Pipe-type ultrasonic sensor

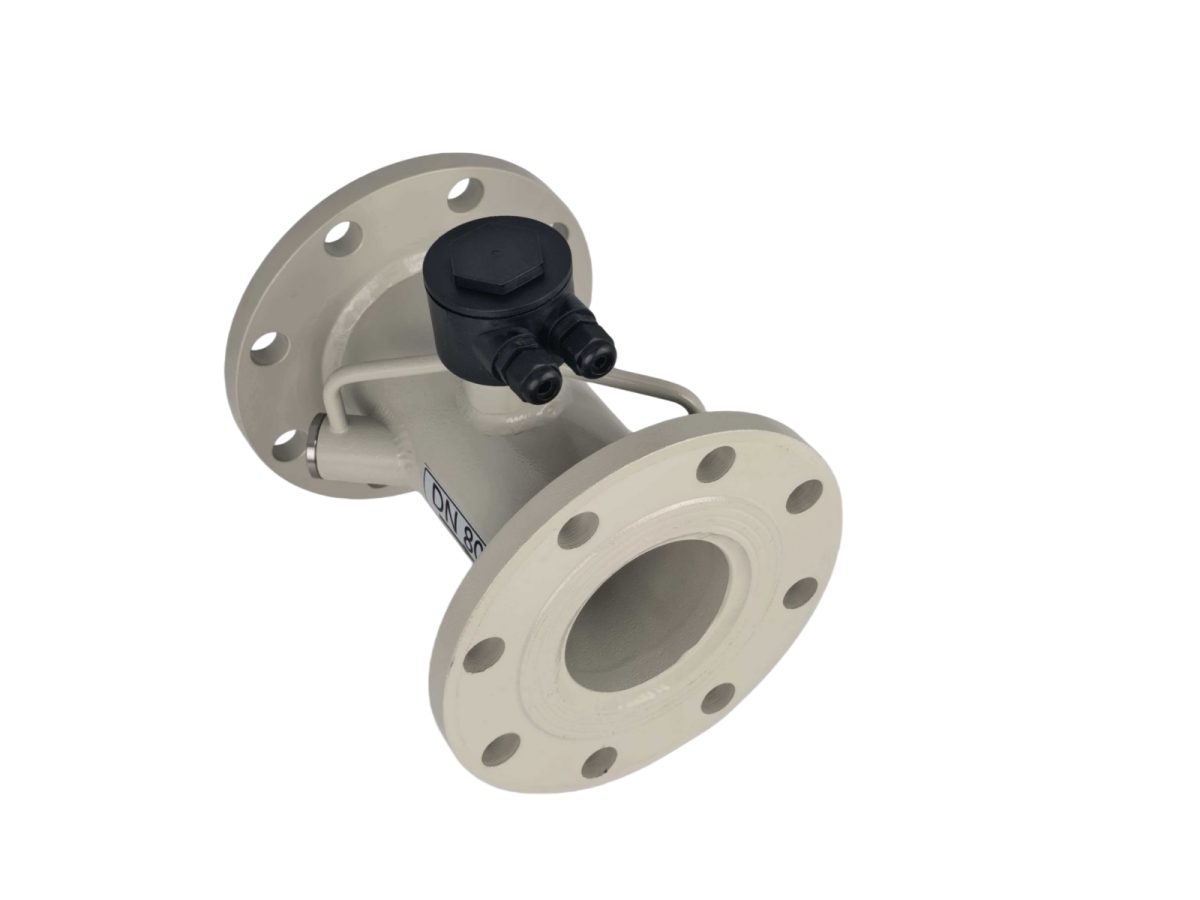

The pipe segment sensor is a type of measurement method in which the sensor is connected directly to the pipeline being measured using flanges.

>Online inquiry

Previous Next

Details

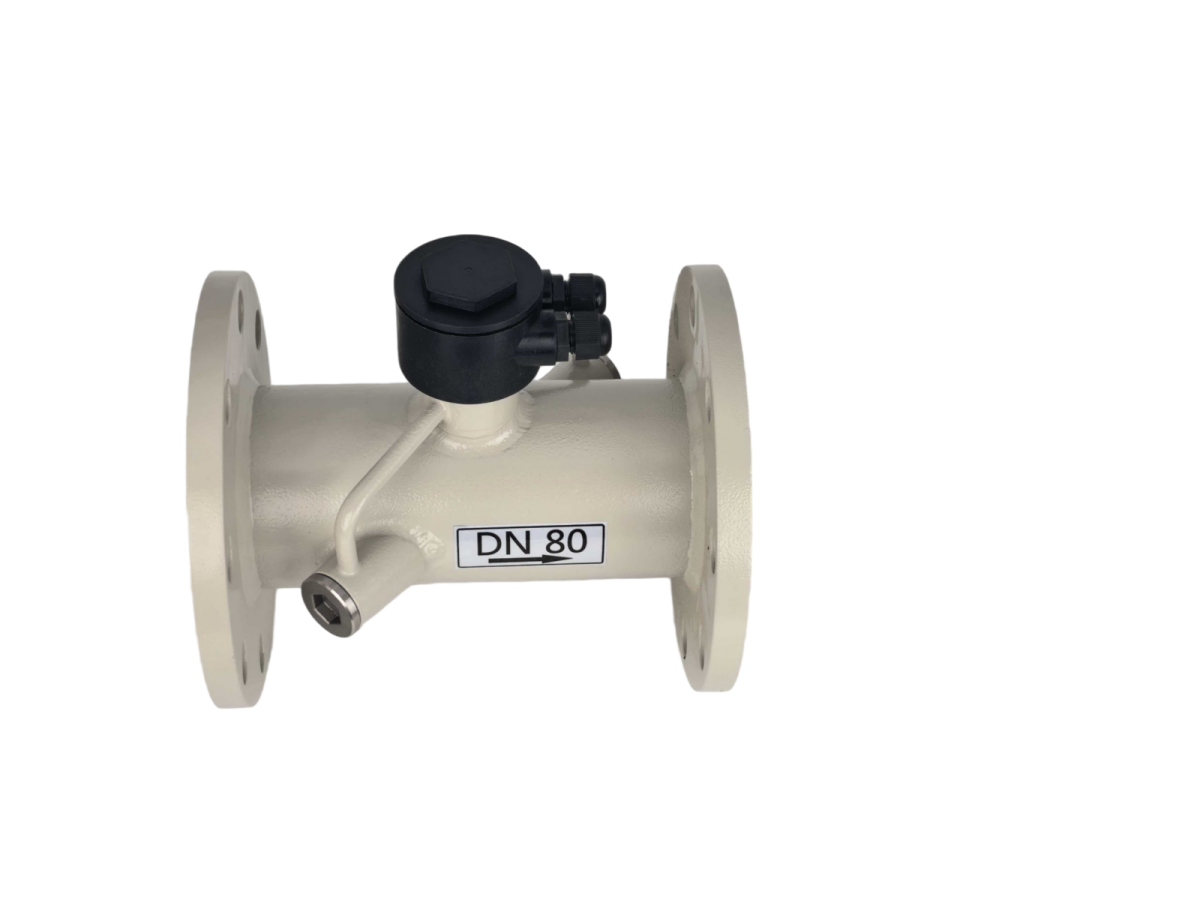

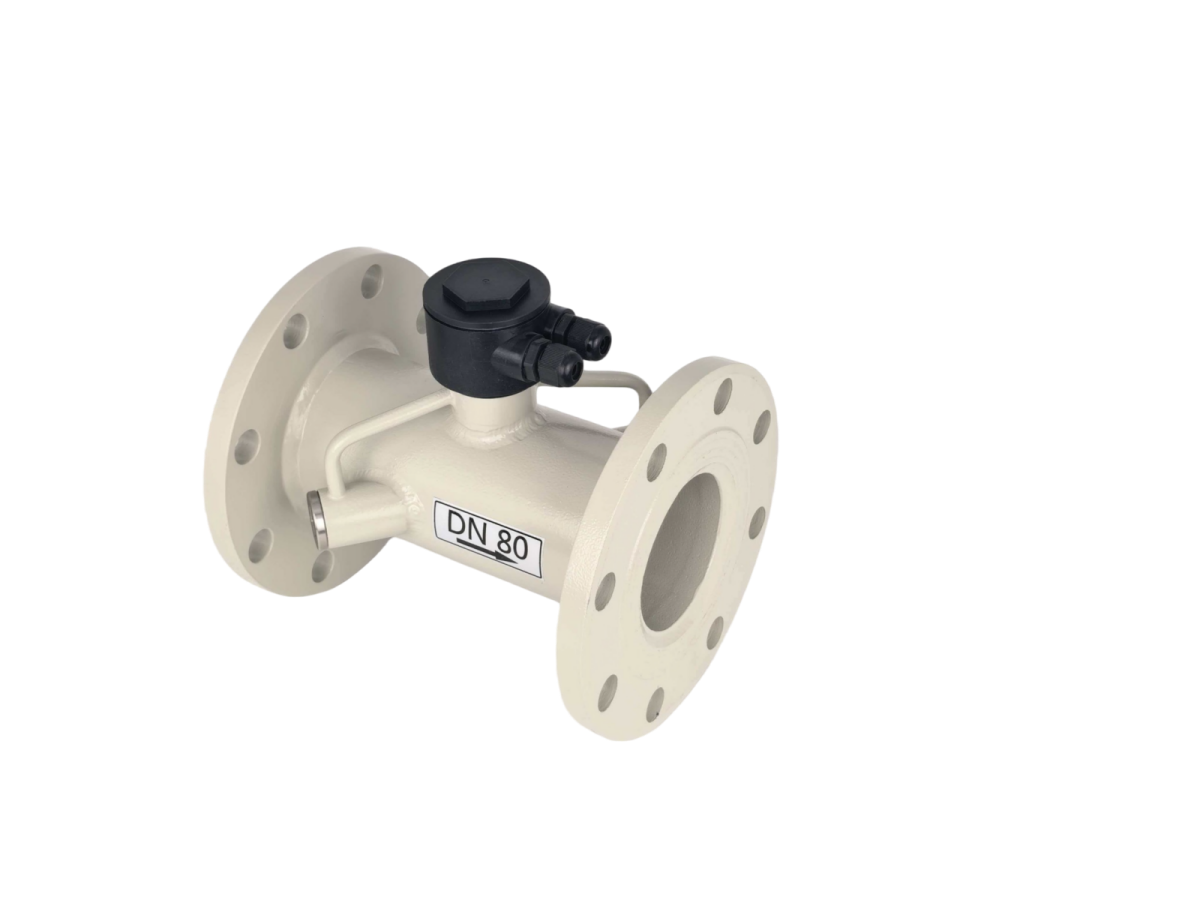

标准型管段式传感器Standard tubular sensor

超声波流量计换能器选择Selection of ultrasonic flow meter transducers

系列管段式超声波流量计Series tubular ultrasonic flow meters

The pipe-section type sensor is a measurement method that utilizes flanges to connect the sensor directly to the pipeline being measured. This type of sensor eliminates the accuracy issues that arise from the installation of external or insert-type sensors, which are caused by human error or inaccurate parameters of the pipeline under inspection; it features high measurement accuracy, good stability, and no need for maintenance.

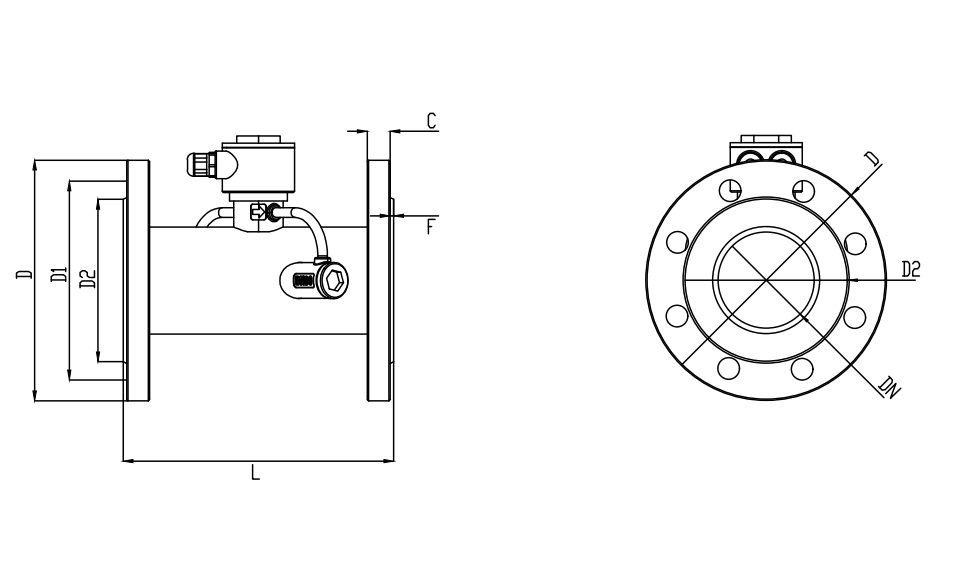

结构示意图标注Labels for structural schematic diagrams（适用所有管道类型产品）(Applicable to all pipeline-type products)

公称口径(DN)Nominal diameter (DN)	压力等级PPressure rating P	长度LLength L	法兰尺寸-外径DFlange size – outer diameter D	法兰尺寸-螺栓孔中心圆直径D1Flange size – Diameter D1 of the center circle of the bolt holes	法兰尺寸-螺栓孔直径φ×数量Flange dimensions – Bolt hole diameter φ × number	法兰尺寸-密封面直径D2Flange size – Seal surface diameter D2	法兰尺寸-法兰厚度CFlange size – Flange thickness C	法兰尺寸-法兰厚度fFlange size – Flange thickness f	螺栓规格Bolt specifications
40	1.6	280	150	110	18×4	84	18	2	M16×60
50	1.6	200	165	125	18×4	99	20	2	M16×70
65	1.6	200	185	145	18×4	118	20	2	M16×70
80	1.6	225	200	160	18×8	132	20	2	M16×70
100	1.6	250	220	180	18×8	156	22	2	M16×80
125	1.6	275	250	210	18×8	184	22	2	M16×80
150	1.6	300	285	240	22×8	211	24	2	M20×80
200	1.6	350	340	295	22×12	266	26	2	M20×90
250	1.6	450	405	355	26×12	319	28	2	M22×90
300	1.6	500	460	410	26×12	370	32	2	M22×90
350	1.6	550	520	470	26×16	438	35	4	M24×90
400	1.6	600	580	525	30×16	490	38	4	M24×110
450	1.6	700	640	585	30×20	550	42	4	M27×110
500	1.6	800	715	650	33×20	610	46	4	M30×120
600	1.6	1000	840	770	36×20	725	55	5	M33×150
