不锈钢测量探头 · 结构稳定可靠 · 精准测量Stainless steel measurement probe · Stable and reliable structure · Precise measurements

四大优势
✅ 不锈钢材质：耐腐蚀 抗冲击
✅ 测量精准：结构稳定 运行可靠
✅ 结构可靠：双励磁磁结构 抗振动
✅ 源头工厂：自主生产 品质保障
Four key advantages
✅ Stainless steel material: resistant to corrosion and impacts
✅ Precise measurements: stable structure and reliable operation
✅ Reliable design: dual-magnetization structure that resists vibrations
✅ Direct factory production: ensures high quality

产品特点
☑ 不锈钢测量探头
探头与插入杆体均采用不锈钢材质，耐腐蚀、抗氧化，适用于多种腐蚀性介质
☑ 结构稳定可靠
探头采用双励磁磁结构，无活动部件，测量更稳定，抗冲击、抗振动
☑ 高精度测量
精度等级 ±1/±2级，满足流量计量要求
☑ 多种工况适用
适用于供水、给排水、化工、冶金等多种行业的中大口径管道流量测量
☑ 安装便捷
结构紧凑，安装操作简单，维护方便
Product Features
☑ Stainless steel measurement probe
Both the probe and the insertion rod are made of stainless steel, which gives them corrosion and oxidation resistance, making them suitable for use in various corrosive environments
☑ Stable and reliable structure
The probe features a dual-magnetization design; it has no moving parts, resulting in more stable measurements as well as better resistance to impacts and vibrations
☑ High-precision measurement
The precision level is ±1/±2, meeting the requirements for flow measurement
☑ Suitable for various operating conditions
It can be used for measuring flow rates in medium and large diameter pipes across industries such as water supply, water treatment, chemicals, and metallurgy
☑ Easy installation
Its compact design makes installation and operation simple, as well as maintenance convenient<#>14#>

型号规格
KLD-6000G
适用口径：DN50～DN600mm
Model specifications
KLD-6000G
Applicable diameter range: DN50～DN600mm

口径范围：DN50～DN600mmDiameter range: DN50～DN600mm

精度等级：±1/±2级（可选）
介质温度：≤80℃
工作压力：≤1.6MPa（具体根据工况及安装方式）
管段材质：碳钢（标准）/ 不锈钢（定制）
电极材质：316L / HC / TI / TA / 钽铂合金
测量原理：电磁感应（双励磁结构）
输出信号：4-20mA、脉冲/频率、RS485（可选）
供电电源：3.6V电池  DC24V（可选AC220V）
防护等级：IP65 / IP68
适用介质：导电液体（电导率≥5μS/cm）
安装方式：法兰连接安装
Accuracy grade: ±1/±2 grade (optional)
Medium temperature: ≤80°C
Operating pressure: ≤1.6 MPa (depends on operating conditions and installation method)
Tube material: carbon steel (standard)/stainless steel (customizable)
Electrode material: 316L/HC/TI/TA/tungsten-platinum alloy
Measurement principle: electromagnetic induction (dual excitation structure)
Output signal: 4-20 mA, pulse/frequency, RS485 (optional)
Power supply: 3.6V battery, DC24V (optional AC220V)
Protection rating: IP65/IP68
Applicable media: conductive liquids (conductivity ≥5 μS/cm)
Installation method: flange connection

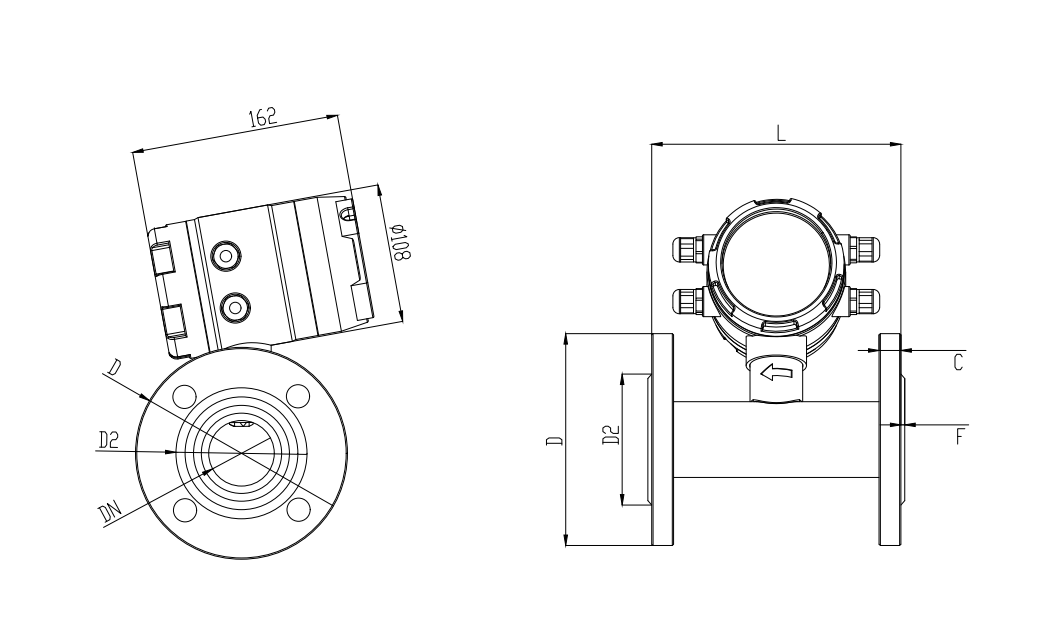

结构示意图标注Labels for structural schematic diagrams（适用所有管道类型产品）(Applicable to all pipeline type products)
