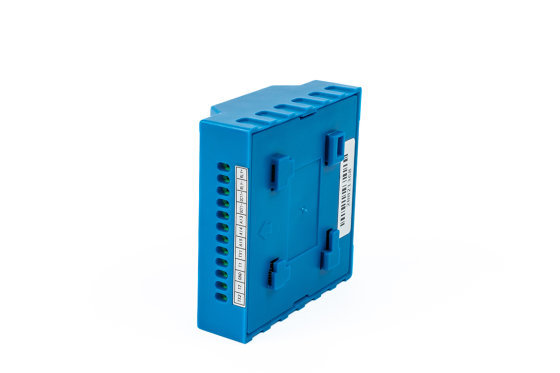

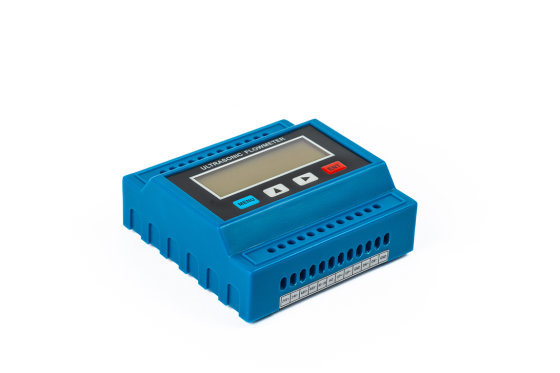

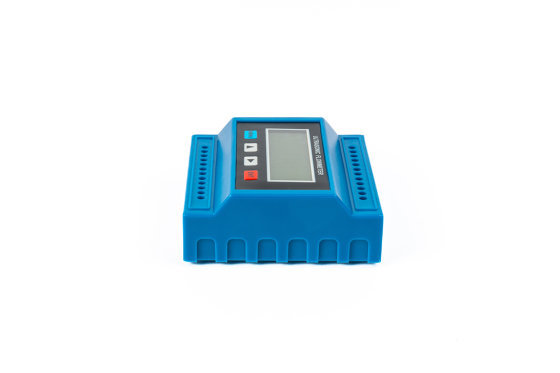

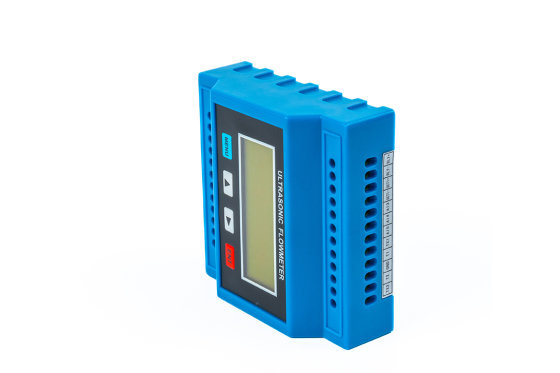

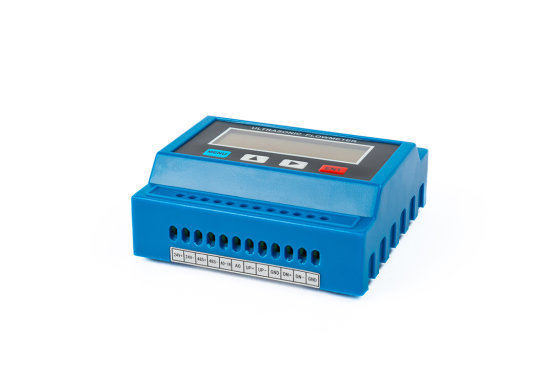

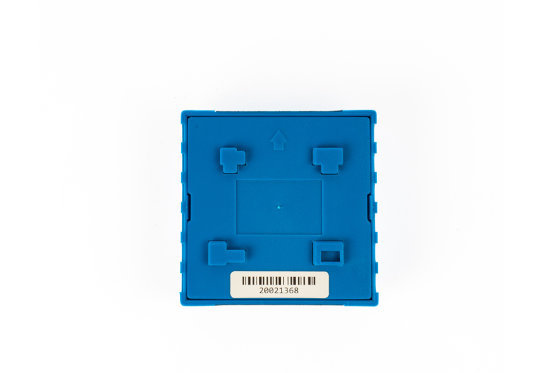

The fixed modular ultrasonic flowmeter is widely used for long-term online flow measurement of various liquids. The main unit and sensor are installed separately. The main unit is mounted on a guide rail, and the sensor is mounted on the pipeline to be measured. The main unit and sensor are connected by a dedicated ultrasonic flowmeter cable, enabling flow measurement. It features a compact size, low cost, easy operation, and a comprehensive output interface. It is suitable for batch use, installed in instrument cabinets or distribution cabinets, and is suitable for system integration supporting projects, water conservancy, Flow meters for networked monitoring projects such as water resources or heating systems.
Product features
• Equipped with self-diagnosis function to check if the current working status is normal.
• Supports multiple languages including Chinese, English, and Italian, catering to different user needs.
• Uses different models of sensors suitable for measuring pipeline flow of various diameters, with measurement diameters up to DN6000mm.
• Uses dual-balanced differential transmission and receiving circuits to effectively resist strong interference sources such as frequency converters, TV towers, and high-voltage lines.
• Can be transmitted via RS485 bus, with transmission distances exceeding dry meters. Networking via the MODBUS protocol is very convenient and can meet the diverse needs of different users.
• Equipped with a pair of PT100 temperature sensors to measure the temperature of heating (cooling) pipe supply and return water, enabling real-time monitoring of heat (cooling) quantity, enabling heat (cooling) measurement.
Technical specifications
| Transmitter | Measurement accuracy | ± 1% |
| Measurement range | 0~±10 meters/second |
| Data recording | Automatically remembers positive/negative/net cumulative values for the previous 512 days, 128 months, and first 10 days; It automatically remembers the first 30 power outage times and flow rates, enabling automatic or manual replenishment of flow |
| Data interface | Isolated RS485 serial interface, allowing flow meter upgrades via PC, supporting protocols such as Modbus |
| Screen display | It can connect to 2×10 backlit Chinese characters or 2×20 characters Western LCD displays, supporting Chinese, English, and Italian languages |
| Flow direction | Measurement in both forward and reverse directions, and measurement of positive, negative, and net cumulative flow/heat |
| Power supply method | DC9~24V |
| Signal output | One channel outputs 4~20mA current |
| 1 OCT pulse output (pulse width between 6~1000ms programmable, default 200ms) |
| 1 relay output |
| Signal input | Three channels of 4-20mA analog input, accuracy 0.1%, capable of collecting signals such as temperature, pressure, and liquid level |
| Two three-wire PT100 platinum resistors enable heat measurement |
| Sensors | Sensor type | External clamp type | Insert-type | Pipe sectional type |
| Nominal diameter | DN15～DN6000mm | DN32～DN2000mm | DN15～DN1000mm |
| Suitable for pipe materials | Pipelines made of carbon steel, stainless steel, cast iron, copper, PVC, aluminum, fiberglass, etc., with uniform density and density, are allowed to have linings |
| Straight pipe section | Sensor installation points must meet the following requirements: 10D upstream, 5D downstream, and 30D from pump outlet (D is the pipe diameter). |
| Measuring medium | Water, seawater, sewage, alcohol, various oils, and other single, uniform, stable liquids capable of conducting ultrasound |
| Pressure rating | Standard: 1.6MPa |
| Sensor temperature | Standard probe: -30~180°C | High-temperature probe: -40~280°C |
| Accessories | Coupling agent, steel strip, ultrasonic cable, 5m x 2 |
Product selection
Shell material:
ABS flame-retardant material
Sensor types
Standard external clamp type (DN15~6000mm),
high-temperature external clamp type (DN15~6000mm),
insertion type (standard, extended, parallel),
pipe section type (DN15~1000mm
Sensor Temperature
Normal (standard) High
Temperature Power Supply
DC9~24V
Dolar power
Pressure level
1.6MPa
Communication cable length
Ultrasonic dedicated cable 5m*2
Optional features
None (standard)
GPRS remote transmission function (2G)
GPRS remote transmission function (4G full network connectivity) NB-IoT
Remote transmission capability
