产品特点Product features

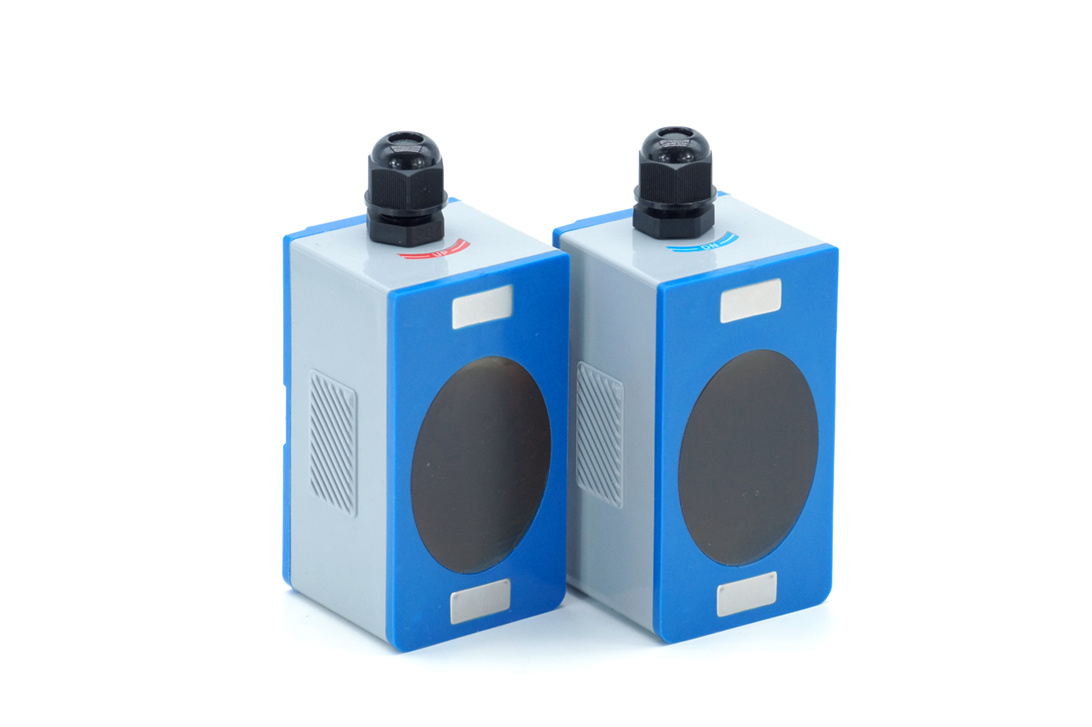

· 带有强力磁铁，测量钢管、铸铁管时，方便于固定，只需将传感器吸附在管道外壁即可；
· It is equipped with a strong magnet, which makes it easy to fix the sensor when measuring steel pipes or cast iron pipes – all that is needed is to attach the sensor to the outer surface of the pipe.
· 测量管径范围：DN15-DN6000mm；
· Measured pipe diameter range: DN15–DN6000 mm;

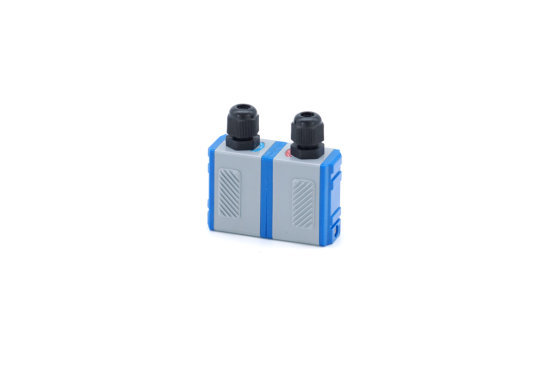

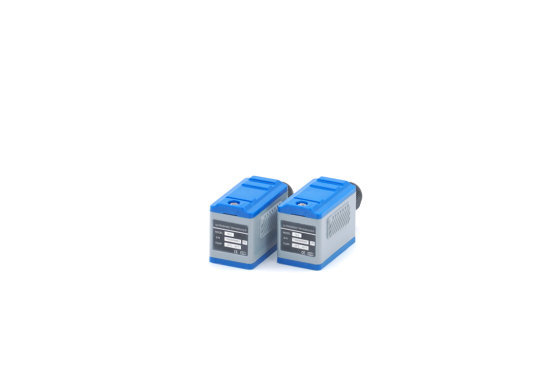

· 根据用途不同，分为携带式外夹、固定式外夹、支架式外夹传感器三类；
· Depending on their purpose, they are divided into three categories: portable external clamps, fixed external clamps, and bracket-type external sensor clamps.
· 传感器接线盒灌胶后防护等级可达IP68
· After sealing the sensor junction box with glue, its protection rating can reach IP68.
· 可采用钢带、钢丝绳、拉紧带、专用夹具固定；
· It can be secured using steel strips, steel cables, tension straps, or specialized clamps;
· 配有地线接线柱，可在有强电磁十抗的场合使用；
· It is equipped with ground terminal posts, allowing it to be used in environments with strong electromagnetic interference;
· 规格齐全，常温、高温各分为大、中、小型三种型号：
· It comes with a full range of specifications; for normal and high temperatures, there are three sizes available: large, medium, and small.
· 接线盒灌胶后防护等级可达IP68；
· After potting the junction box, its protection rating can reach IP68;

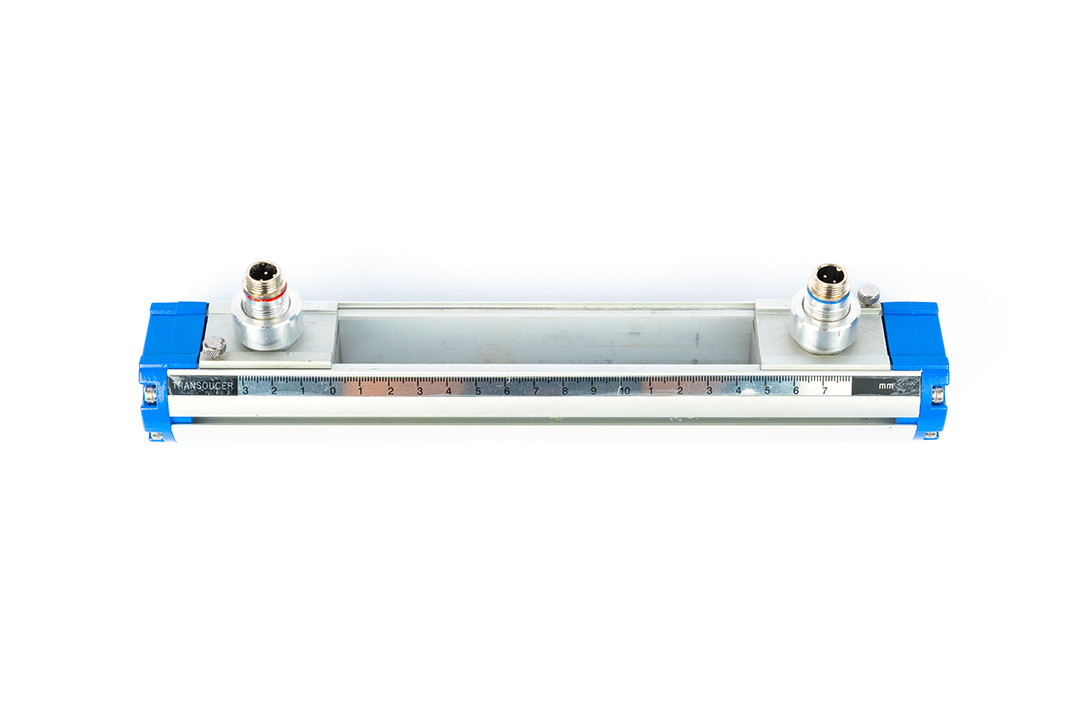

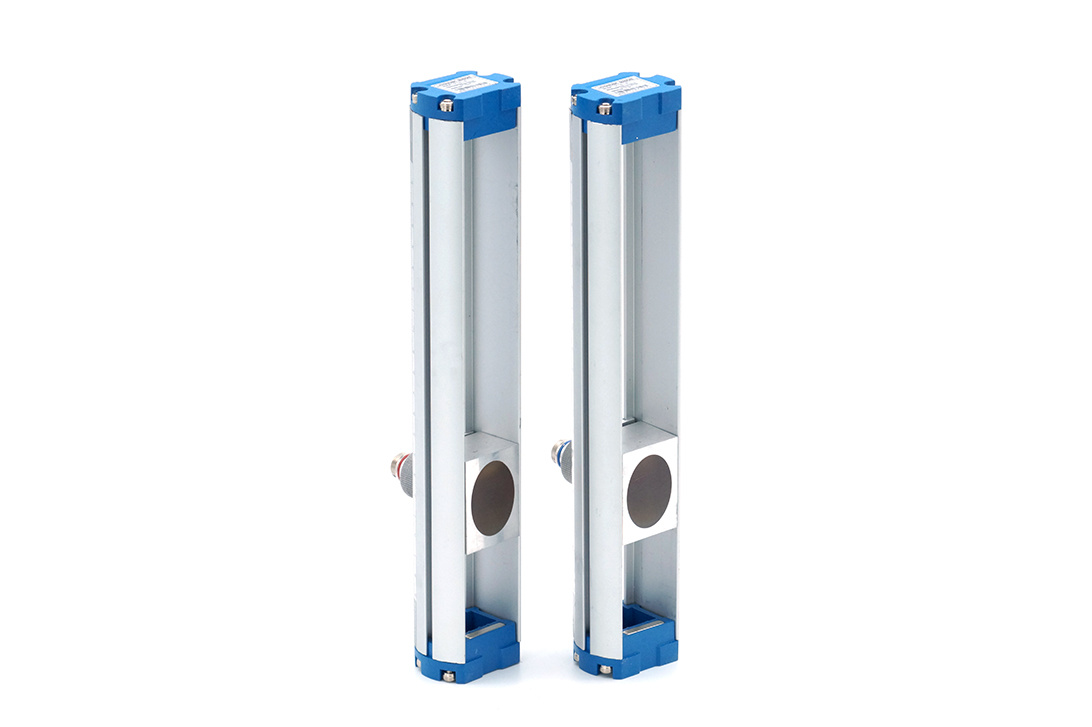

· 支架式超声波传感器采用全铝材质， 耐腐蚀，经久耐用；带有公英制标尺，提高安装精度和方便性。
· The bracket-type ultrasonic sensor is made of all-aluminum material, making it corrosion-resistant and durable; it features imperial and metric scales to enhance installation accuracy and ease of use.
产品规格Product specifications
产品Products | 传感器类Sensors型type | 测量范围Measurement range | 温度范围Temperature range | 安装要求Installation requirements |
固定式
Fixed type
|

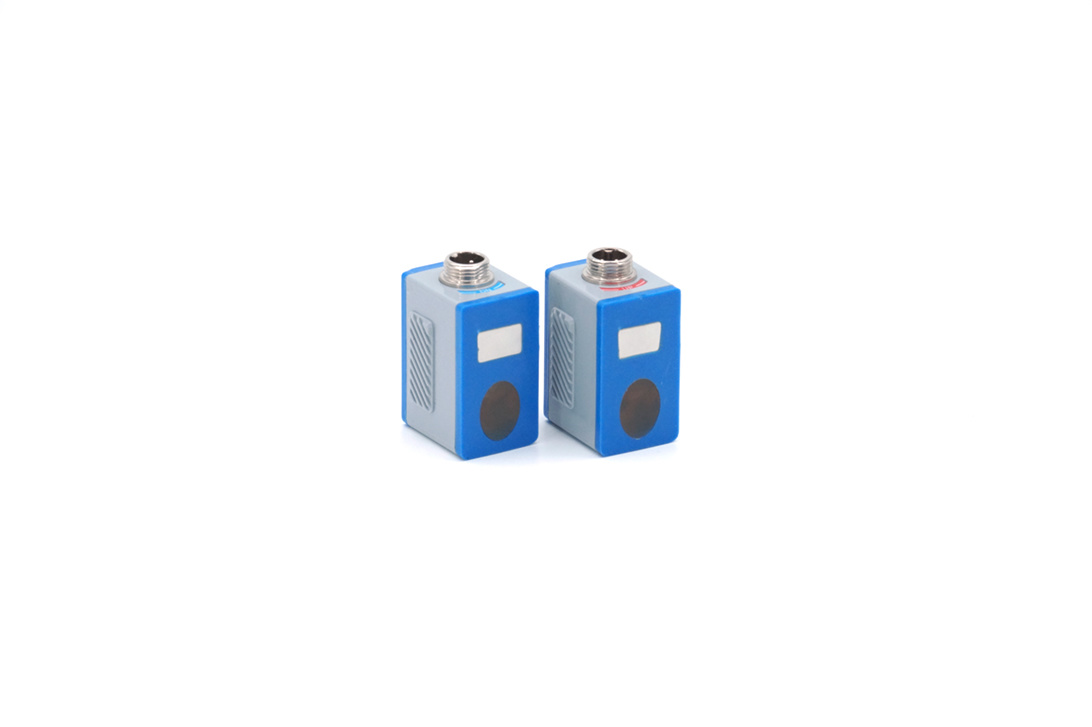

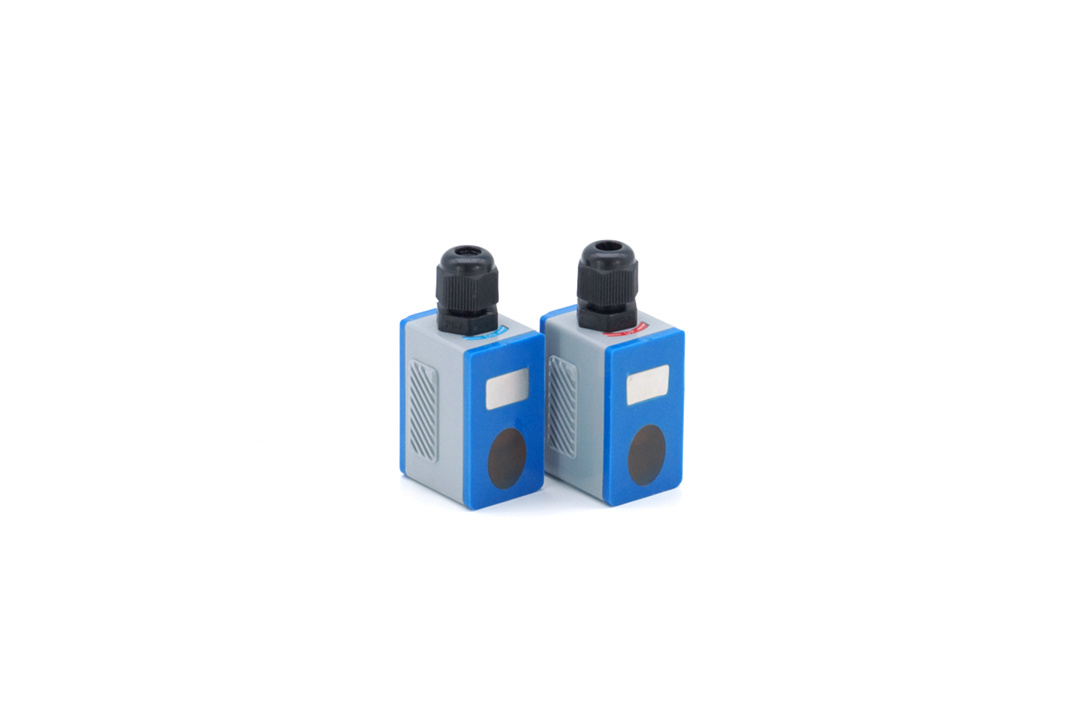

| 常温小型外夹式传感器Small external clamping sensor for normal temperature use | DN15~DN100mm | -30℃~90℃-30°C~90°C | 不破坏管道无需断流No disruption to the pipeline is required, and there’s no need to stop the flow of fluid. |
| 常温中型外夹式传感器Medium-sized external clamping sensor for normal temperature use | DN50~DN700mm |

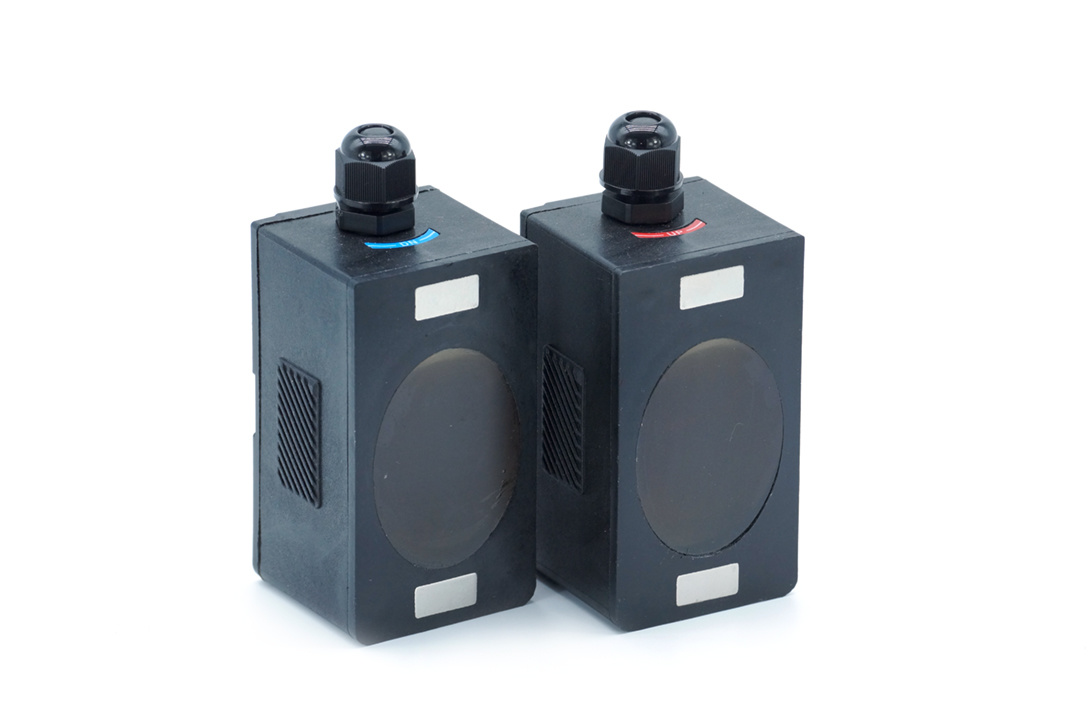

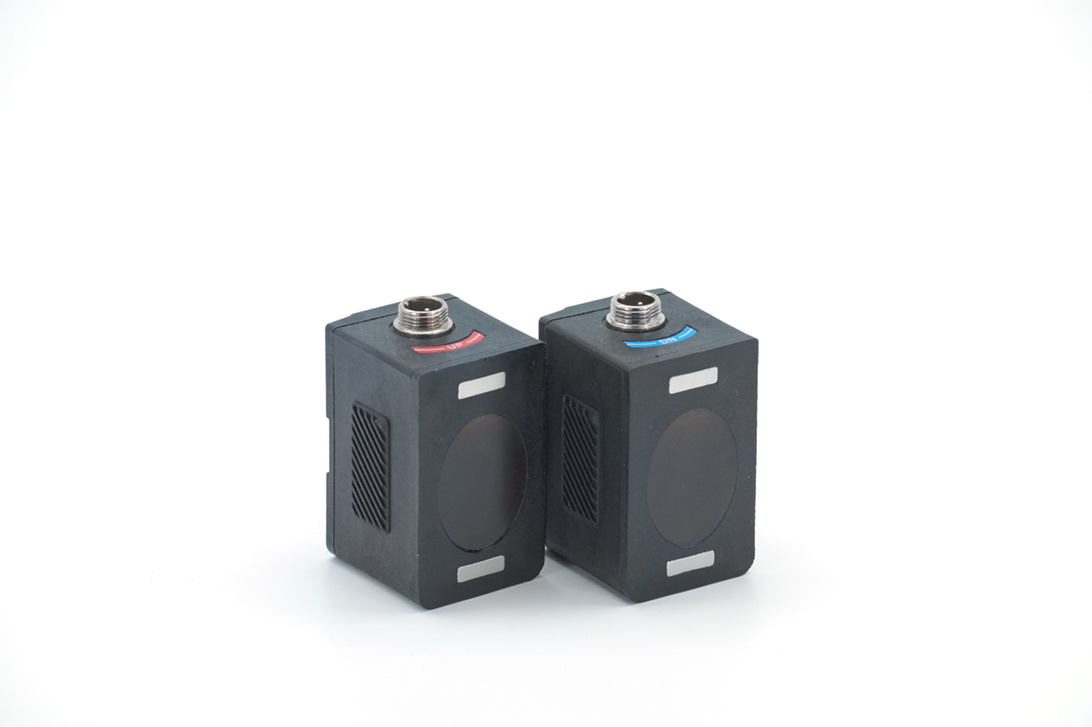

| 常温大型外夹式传感器Large-scale external clamping sensor at room temperature | DN300~DN6000mm |
| 高温小型外夹式传感器High-temperature small external clip-on sensor | DN15~DN100mm | -30℃~160℃-30°C~160°C |
| 高温中型外夹式传感器High-temperature medium-sized external clamping sensor | DN50~DN700mm |
| 高温大型外夹式传感器High-temperature large external clamping sensor | DN300~DN6000mm |
携带式
Portable
|
| 常温小型外夹式传感器Small external clamping sensor for normal temperature use | DN15~DN100mm | -30℃~90℃-30°C~90°C | 不破坏管道无需断流No disruption to the pipeline is required, and there’s no need to stop the flow of fluid. |
| 常温中型外夹式传感器Medium-sized external clamping sensor for normal temperature use | DN50~DN700mm |
| 常温大型外夹式传感器Large-scale external clamping sensor at room temperature | DN300~DN6000mm |
| 高温小型外夹式传感器High-temperature small external clip-on sensor | DN15~DN100mm | -30℃~160℃-30°C~160°C |
| 高温中型外夹式传感器High-temperature medium-sized external clamping sensor | DN50~DN700mm |
| 高温大型外夹式传感器High-temperature large external clamping sensor | DN300~DN6000mm |

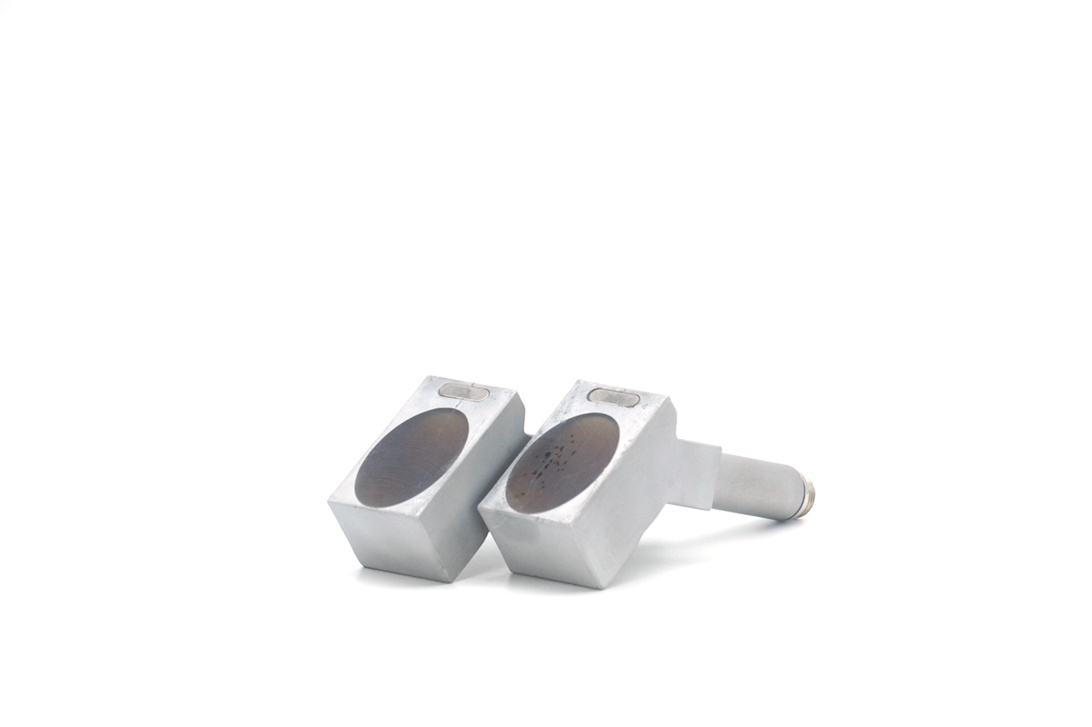

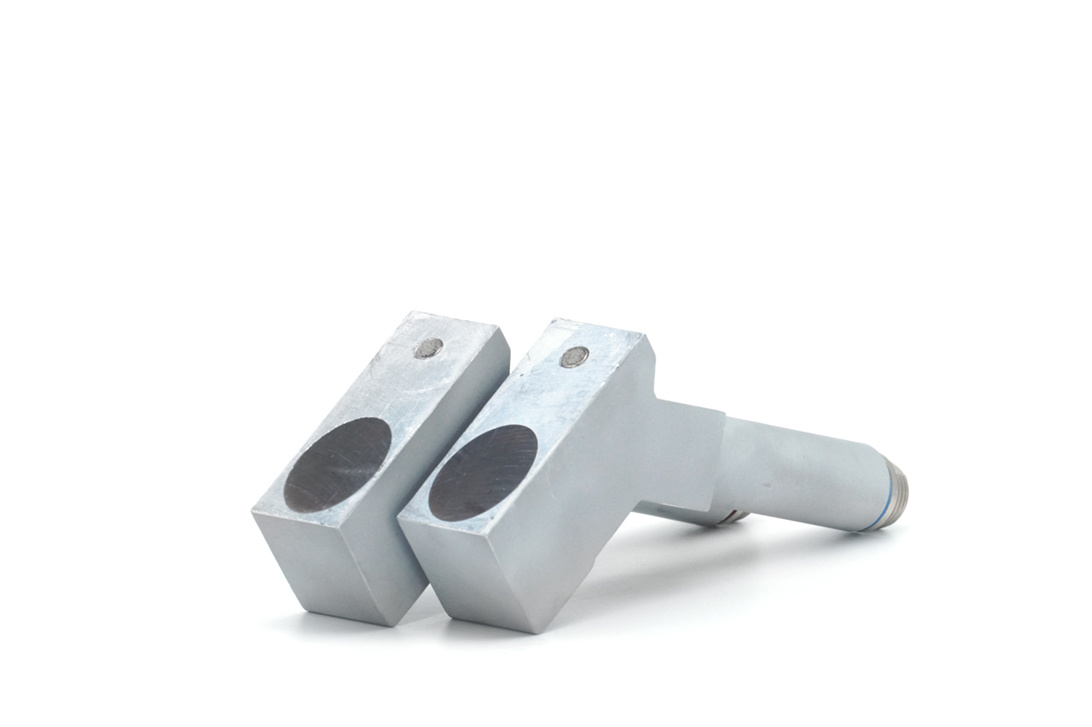

| 超高温小型外夹传感器Ultra-high temperature small external clip sensor | DN15～DN100mm | 30℃~220℃30°C to 220°C |
| 超高温中型外夹传感器Ultra-high temperature medium-sized external clamping sensor | DN50～DN6000mm |
支架式
|
| 小支架传感器 | DN15~DN100mm | -30~180℃ | 不破坏管道无需断流 |
| 中支架传感器 | DN50~DN6000mm |
