尺寸：340*275*170mmDimensions: 340*275*170mm

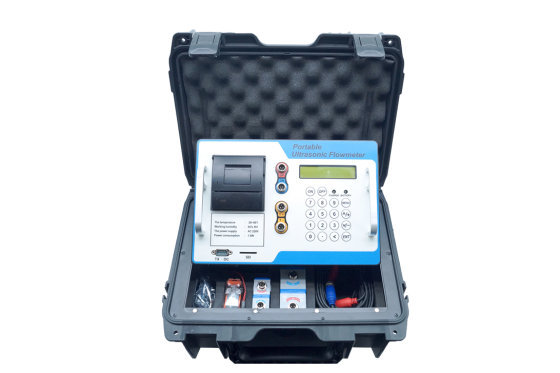

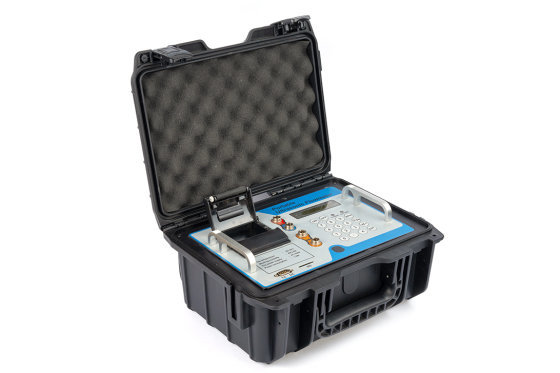

便携式超声波流量计适用于各种工业现场中液体流量的在线式测量及标定和巡检测量，可移动式测量流量流速，多种用途、安装简单、携带方便，实现了液体流量的非接触式测量，多用于临时检测，可现场对数据进行打印，稳定性好，零点漂移小、测量精度高，量程比宽抗干扰性强等特点。特别适合用做生产监测、流量效验、临时检测、流量巡查、水表平衡调试、热网平衡调试、节能监测等，是流量及时检测必备的工具仪表。
Portable ultrasonic flow meters are suitable for the online measurement, calibration, and routine inspection of liquid flow in various industrial settings. They allow for the measurement of flow rate in a mobile manner; they have multiple applications, are easy to install and carry, and enable non-contact measurement of liquid flow. They are often used for temporary inspections, with the ability to print data on-site. These meters feature good stability, minimal zero-point drift, high measurement accuracy, a wide measurement range, and strong resistance to interference. They are particularly suitable for use in production monitoring, flow rate verification, temporary inspections, flow rate checks, balancing of water meters, balancing of heating systems, and energy conservation monitoring – making them essential tools for timely flow rate measurement.
产品特点Product features
• 内置热敏打印机，可现场对数据进行打印，测量过程中不破坏管道，不需要停产。
• 手提式设计，方便携带，移动测量、计量检测、数据比对，判断仪表测量时否正常等。
• 内置镍氧充电电池，可连续工作 15~20 小时，支持中、英、意等多种语言，适合不同用户的需要。
• 加配温度传感器测量供热(冷)管路供回水温度，对热(冷)量进行实时监测，可实现热(冷)量的测量功能。
• 内置数据记录器，可将提前设定的多达 20 余项的测量结果上传至电脑或联网通讯，便于用户对数据进行统计分析。
• It features a built-in thermal printer that allows for on-the-spot printing of data; this means that the pipes are not damaged during measurement, and there is no need to stop production.
• It has a portable design, making it easy to carry around for mobile measurements, testing, and data comparison, as well as to determine whether the instrument is functioning properly.
• It is equipped with a nickel-oxygen rechargeable battery, which enables continuous operation for 15–20 hours. It supports multiple languages such as Chinese, English, and Italian, catering to the needs of different users.
• A temperature sensor is included to measure the temperature of the water flowing in and out of the heating/cooling pipes, allowing for real-time monitoring of the heat/cooling capacity.
• There is a built-in data recorder that can store up to 20 different measurement results, which can be transferred to a computer or sent over a network, facilitating data analysis by users.<#>8#>
技术参数Technical parameters
| 变送器Transmitter | 测量精度Measurement accuracy | ± 1% |
| 测量范围Measurement range | 0~±10米/秒0~±10 meters per second |
| 数据记录Data recording | 热敏打印机，外置 SD 卡数据存储器，可存储时间、瞬时流量、累积流量等并可将数据导入计算机
Thermal printer with an external SD card data storage device; it can store information such as time, instantaneous flow rate, and cumulative flow rate, and it is also capable of importing these data into a computer. |
| 数据接口Data interface | 隔离RS485串行接口，可通过PC电脑对流量计进行升级，支持modbus等协议
The RS485 serial interface is isolated, allowing the flow meter to be upgraded using a PC; it supports protocols such as Modbus. |
| 屏幕显示Screen display | 可连接2×10背光型汉字或者2×20字符西文型液晶显示器，支持中、英、意三种语言
It can be connected to a 2×10 backlit Chinese character LCD or a 2×20 character Western-language LCD, and supports three languages: Chinese, English, and Italian. |
| 流向Flow direction | 正、反向双向计量，并计量正、负、净累积流量/热量Two-way measurement in both forward and reverse directions, with the ability to measure the positive, negative, and net cumulative flow/heat. |
| 供电方式Power supply method | 内置镍氢充电电池，可持续工作 15-20 小时It features a built-in nickel-metal hydride rechargeable battery, allowing it to operate for 15–20 hours. |
| 信号输出Signal output | RS485串行接口RS485 serial interface |
| 信号输入Signal input | 2路三线制 PT100 铂电阻，实现热量测量2-wire 3-terminal PT100 platinum resistor for heat measurement |
| 传感器Sensors | 传感器类型Sensor type | 外夹式External clamping type | 支架式bracket type |
| 公称直径nominal diameter | DN15-6000mm |
| 适用管材Applicable pipe materials | 碳钢、不锈钢、铸铁、铜、PVC、铝、玻璃钢等均匀质密的管道，允许有衬里Uniform and dense pipes such as carbon steel, stainless steel, cast iron, copper, PVC, aluminum, and fiberglass can have a lining. |
| 直管段Straight pipe section | 传感器安装点需满足：上游10D，下游5D，距泵出口30D(D为管直径)The sensor installation location must be such that it is 10D upstream, 5D downstream, and 30D away from the pump outlet (where D is the diameter of the pipe). |
| 测量介质Measurement medium | 水、海水、污水、酒精、各种油类等能传导超声波的单一、均匀、稳定的液体Single, uniform, stable liquids that can transmit ultrasonic waves, such as water, seawater, sewage, alcohol, and various oils. |
| 压力等级Pressure rating | 标准:1.6MPaStandard: 1.6 MPa |
| 传感器温度Sensor temperature | 标准探头：-30～180°CStandard probe: -30～180°C | 高温探头：-40～280°CHigh-temperature probe: -40～280°C |

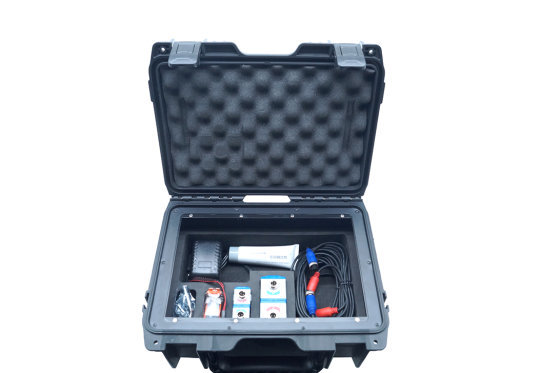

| 配件Accessories | 铝合金防护箱、耦合剂、电源适配器、固定钢支架、卷尺、超声波信号线 5m*2
Aluminum alloy protection box, coupling agent, power adapter, fixing steel brackets, tape measure, ultrasonic signal cable 5m*2 |
产品选型Product selection
类型
超声波流量计
超声波热量表
传感器类型
外夹式(DN15-6000mm)
支架式(DN15~6000mm)
传感器温度
常温(标准)
高温
输出方式
Type
Ultrasonic flow meter
Ultrasonic heat meter
Sensor type
Clamp-on type (DN15–6000 mm)
Bracket-type (DN15–6000 mm)
Sensor temperature
Room temperature (standard)
High temperature
Output method
RS485
电源方式
AC85-264V
压力等级
1.6MPa
通讯线长
超声波专用电缆5米2
RS485
Power supply method
AC85-264V
Pressure rating
1.6MPa
Communication cable length
Special ultrasonic cable, 5 meters long<#>22#>
