Material die-cast aluminum

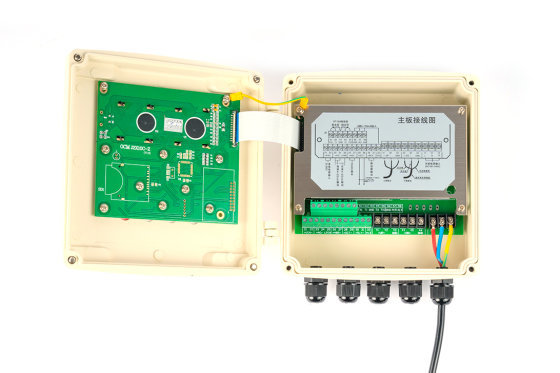

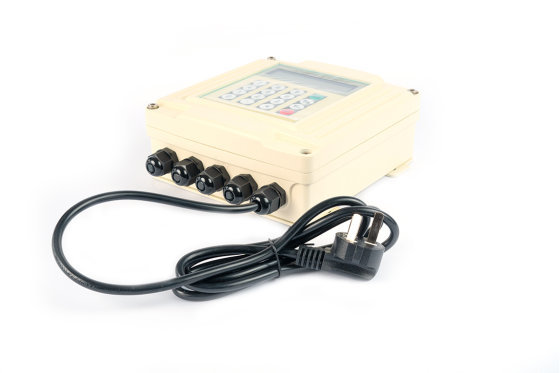

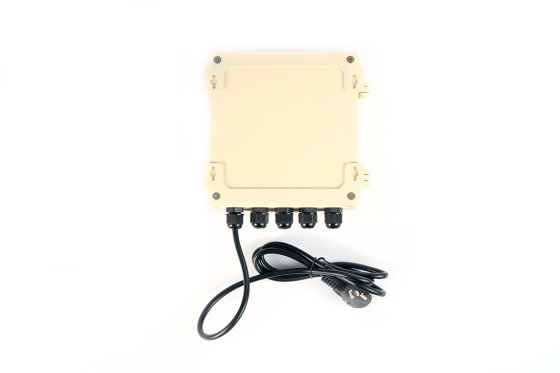

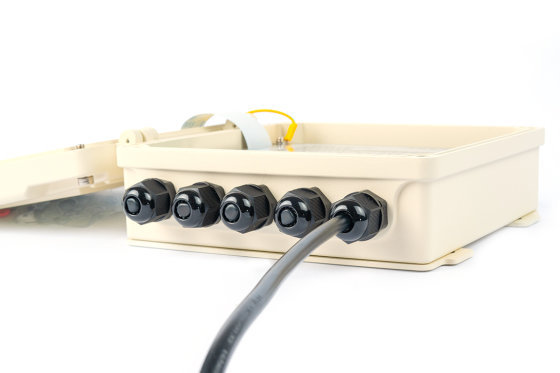

Fixed split wall-mounted ultrasonic flowmeter is widely used for long-term online flow measurement of various liquids. The host and sensor are installed separately. The host can be wall-mounted. The sensor is installed on the pipe to be measured. The host and sensor are connected with a special ultrasonic flowmeter cable to achieve flow measurement. It is currently the most widely used ultrasonic flowmeter.
Features
• High accuracy level, measurement accuracy is better than ±1%.
• Dual power input interface, DC24V and AC220V available.
• Equipped with self-diagnosis function to prompt whether the current working status is normal.
• Supports multiple languages such as Chinese, English, and Italian, suitable for the needs of different users.
• Select different types of sensors, suitable for measuring the flow of pipes with different diameters, and the measuring diameter can reach DN6000mm.
• It can be transmitted through the RS485 bus, and the transmission distance can reach more than one kilometer. The MODBUS protocol is very convenient for networking and can meet the various requirements of different users.
• Equipped with a pair of PT100 temperature sensors to measure the supply and return water temperatures of the heating (cold) pipelines and monitor the heat (cold) quantity in real time, the heat (cold) quantity measurement function can be realized.
Product technology
| Transmitter | Measurement accuracy | ± 1% |
| Measuring range | 0~±10 meters/second |
| data logging | Automatically memorizes the positive/negative/net accumulation volume of the previous 512 days, 128 months, and the previous 10 days; automatically memorizes the previous 30 power-on and power-off times and flow rates, and can realize automatic or manual flow replenishment. |
| Data interface | Isolated RS485 serial interface, the flow meter can be upgraded through PC, and supports protocols such as modbus |
| screen display | Can be connected to a 2×10 backlit Chinese character or 2×20 Spanish character LCD display, supporting three languages: Chinese, English and Italian |
| flow direction | Forward and reverse bi-directional measurement, and measure positive, negative and net cumulative flow/heat |
| Power supply method | AC85~264V or DC9~24V |
| Signal output | 1 channel 4~20mA current output |
| 1 channel OCT pulse output (pulse width is programmable between 6~1000ms, default 200ms) |
| 1 relay output |
| Signal input | 3 channels of 4-20mA analog input, accuracy 0.1%, can collect signals such as temperature, pressure, liquid level, etc. |
| 2-way three-wire PT100 platinum resistor to achieve heat measurement |
| sensor | Sensor type | External clip-on | Plug-in | Pipe segment type |
| Nominal diameter | DN15～DN6000mm | DN32～DN2000mm | DN15～DN1000mm |
| Applicable pipes | Uniform and dense pipes such as carbon steel, stainless steel, cast iron, copper, PVC, aluminum, fiberglass, etc. are allowed to be lined |
| Straight pipe section | The sensor installation point needs to meet: 10D upstream, 5D downstream, and 30D away from the pump outlet (D is the pipe diameter) |
| Measuring medium | Water, seawater, sewage, alcohol, various oils and other single, uniform and stable liquids that can conduct ultrasonic waves |
| pressure level | Standard:1.6MPa |
| sensor temperature | Standard probe: -30～180°C | High temperature probe: -40～280°C |
| Accessories | Coupling agent, steel strip, ultrasonic cable 5mx2 |
Product selection
Housing material
die cast aluminum
ABS flame retardant material
Sensor type
Standard external clamp type (DN15~6000mm)
High temperature external clamp type (DN15~6000mm)
Plug-in type (standard, extended, parallel)
Pipe segment type (DN15~1000mm)
sensor temperature
Normal temperature (standard)
high temperature
Power supply method
AC85~264V
DC9~24V
Solar powered
pressure level
1.6 MPa
Communication line length
Ultrasonic special cable 5 meters*2
Optional features
None (standard)
GPRS remote transmission function (2G)
GPRS remote transmission function (4G full network)
NB-loT remote transmission function
材质压铸铝
固定分体壁挂式超声波流量计广泛应用于各种液体的长期在线流量测量，主机与传感器分开安装，主机可用于挂墙安装，传感器安装在需测量的管道上，主机和传感器用超声波流量计专用电缆连接，即可实现流量测量，是目前应用较广泛的超声波流量计。
产品特点
• 高准确度等级，测量精度优于±1%。
• 双电源输入接口，可DC24V和AC220V。
• 带有自诊断功能，提示当前工作状态是否正常。
• 支持中、英、意等多种语言，适合不同用户的需要。
• 选用不同型号的传感器，适合不同口径管道流量的测量，测量口径可达DN6000mm。
• 可通过RS485总线传输，传输距离可达千米以上，采用MODBUS协议组网十分方便，可满足不同用户的各种要求。
• 加配一对PT100温度传感器测量供热(冷)管路供回水温度，对热(冷)量进行实时监测，可实现热(冷)量的测量功能。
产品技术
| 变送器 | 测量精度 | ± 1% |
| 测量范围 | 0~±10米/秒 |
| 数据记录 | 自动记忆前512天、128个月、前10日正/负/净累积量; 自动记忆前30次上、断电时间和流量并可以实现流量的自动或手动补加 |
| 数据接口 | 隔离RS485串行接口，可通过PC电脑对流量计进行升级，支持modbus等协议 |
| 屏幕显示 | 可连接2×10背光型汉字或者2×20字符西文型液晶显示器，支持中、英、意三种语言 |
| 流向 | 正、反向双向计量，并计量正、负、净累积流量/热量 |
| 供电方式 | AC85~264V或DC9~24V |
| 信号输出 | 1路4～20mA电流输出 |
| 1路OCT脉冲输出(脉冲宽度6～1000ms之间可编程，默认200ms) |
| 1路继电器输出 |
| 信号输入 | 3路4-20mA模拟输入，精度0.1%，可采集温度、压力、液位等信号 |
| 2路三线制PT100铂电阻，实现热量测量 |
| 传感器 | 传感器类型 | 外夹式 | 插入式 | 管段式 |
| 公称直径 | DN15～DN6000mm | DN32～DN2000mm | DN15～DN1000mm |
| 适用管材 | 碳钢、不锈钢、铸铁、铜、PVC、铝、玻璃钢等均匀质密的管道，允许有衬里 |
| 直管段 | 传感器安装点需满足:上游10D，下游5D，距泵出口30D(D为管直径) |
| 测量介质 | 水、海水、污水、酒精、各种油类等能传导超声波的单一、均匀、稳定的液体 |
| 压力等级 | 标准:1.6MPa |
| 传感器温度 | 标准探头:-30～180°C | 高温探头:-40～280°C |
| 配件 | 耦合剂、钢带、超声波电缆5mx2 |
产品选型
壳体材料
压铸铝
ABS阻燃材质
传感器类型
标准外夹式（DN15~6000mm）
高温外夹式（DN15~6000mm）
插入式（标准、加长、平行）
管段式（DN15~1000mm）
传感器温度
常温（标准）
高温
供电方式
AC85~264V
DC9~24V
太阳能供电
压力等级
1.6MPa
通讯线长
超声波专用电缆5米*2
选配功能
无（标准）
GPRS远传功能（2G）
GPRS远传功能（4G全网通）
NB-loT远传功能
