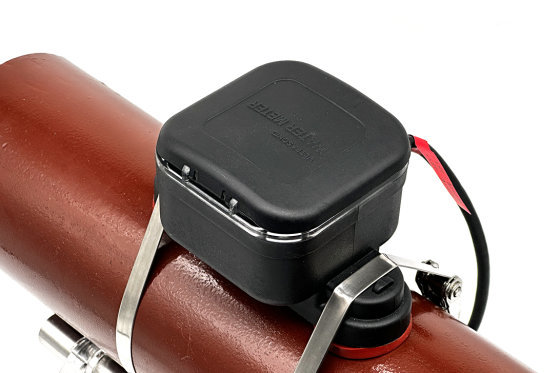

该产品执行中华人民共和国国家标准GB/T 778-2018《饮用冷水水表和热水水表》标准，利用超声波在顺流和逆流介质中的传播时间差来简接测得介质流速，通过流速计量流量。高准确度，抗大水流冲击，使得野外，和缺电场所的管路流量，将计量成为可能，也可长时间在大水流速下稳定运行，同时适合消防用水计量，是一款工业级超声波水表，并具有多种输出功能，通过无线网络将现场所测量的数据传输到监控室内，可以从根本上解决传统机械水表始动流量高，小流量不计量，远程实时抄表等难题。广泛应用于水计量的采暖设施中、自来水、污水处理、工业循环水、冷却水和热水、自来水管网等。
This product complies with the national standard of the People’s Republic of China, GB/T 778-2018, titled \"Meters for cold and hot drinking water.\" It measures the flow rate of the fluid by utilizing the difference in propagation time of ultrasonic waves in forward and reverse flow directions; flow volume is thus determined based on this flow rate. Thanks to its high accuracy and resistance to high flow rates, it enables accurate measurement of flow in pipelines located in outdoor areas or in places where electricity is unavailable. It can also operate stably even under high flow conditions for extended periods of time. Suitable for measuring water used in firefighting applications, this is an industrial-grade ultrasonic water meter that offers various output options. It allows the transmission of data collected on-site to a control room via wireless networks, thereby addressing the issues associated with traditional mechanical water meters, such as high starting flow rates, inability to measure low flow volumes, and difficulties in remote, real-time reading. It is widely used in heating systems, tap water supply, sewage treatment, industrial circulating water systems, cooling water and hot water systems, as well as in tap water distribution networks.
产品特点Product features
• 全密封结构，防水设计。
• 无需停水、可以带压安装，现场施工方便快捷。
• 采用环保锂电池，可连续工作15年以上(也可选配兼具外部供电)。
• 具有精度高，信号强、耗电小、稳定性好、始动流量低、量程比宽、不受水质影响等特点。

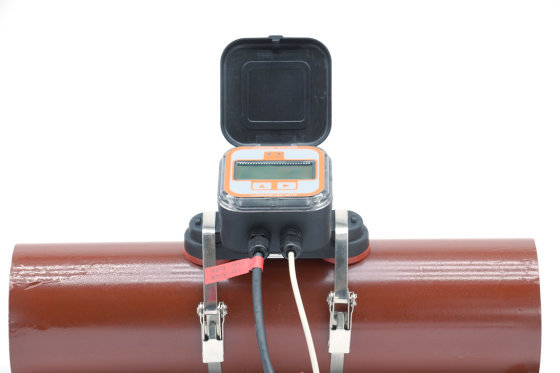

• 加配温度传感器测量供热(冷)管路供回水温度，还可实现热(冷)量的测量功能。
• 不用考虑常规流量计前十后五的安装要求，在现场管道条件极其恶劣的情况下，仍可以稳定的测量。
• 可根据用户不同的需要添加RS485接口来实现不同需求的远程抄表功能，便于集中管理，当管网运行异常时，主动上报管网运行异常的信息。
• It features a fully sealed design that makes it waterproof.
• Installation can be carried out while the water flow is ongoing, without the need to stop the water supply; this makes on-site installation fast and convenient.
• It uses environmentally friendly lithium batteries, allowing it to operate continuously for over 15 years (an external power supply can also be used as an option).
• It boasts high precision, strong signal quality, low power consumption, good stability, low starting flow rate, a wide measurement range, and is not affected by water quality.
• A temperature sensor is included to measure the temperature of the water flowing in and out of the heating/cooling pipes, enabling the calculation of heat/cooling capacity.
• There is no need to adhere to the usual installation requirements regarding the position of the flow meter; it can still provide accurate measurements even in extremely harsh pipeline conditions.
• An RS485 interface can be added to meet various user needs, facilitating remote data collection for easier centralized management. It can also alert users to any abnormalities in the pipeline system.
技术参数Technical parameters
| 变送器Transmitter | 测量精度Measurement accuracy | 一级Level 1 |
| 测量范围Measurement range | 0~±10m/S |
| 数据存储Data storage | 断电保护功能，每月存储功能Power failure protection feature, monthly storage function |
| 供电方式Power supply method | 标准：3.6V锂电池；可选：外接DC9-24V直流电源；4-20mA两线制供电；太阳能供电；（多种供电方式请提前注明）
Standard: 3.6V lithium battery; Optional: external DC9-24V power supply; 4-20mA two-wire power supply; solar power supply; (Please specify the desired power supply method in advance.) |

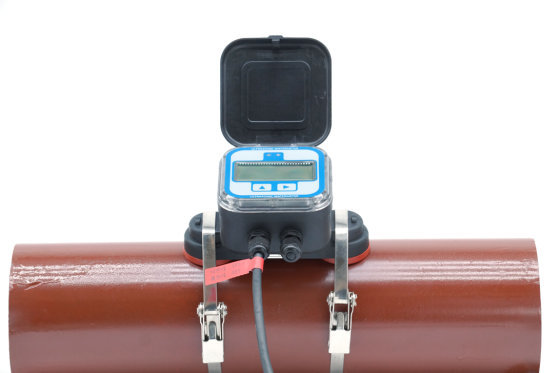

| 操作方式Operation method | 触摸按键Touch button |
| 数据通讯Data communication | M-BUS接口M-BUS interface | 188通讯协议188 Communication Protocol |
| RS485接口RS485 interface | 波特率2400bps，4800bsp；9600bps可选；默认2400bps，Modbus-RTU协议
Baud rates: 2400bps, 4800bps; 9600bps is also an option; the default value is 2400bps, using the Modbus-RTU protocol. |
| 4-20mA输出4-20mA output | RS485与4-20mA输出不能同时使用，只能单独选用RS485 and 4-20mA outputs cannot be used simultaneously; only one of them can be selected. |
| 电池寿命Battery life | ≥15年，时间可选≥15 years; the time period can be selected. |
| 压力损失Pressure loss | 无压损No pressure loss |
| 传感器Sensors | 测量介质Measurement medium | 水、海水、污水、酒精、各种油类能传导超声波的单一、均匀、稳定的液体Water, seawater, sewage, alcohol, and various oils are all single, uniform, stable liquids that can transmit ultrasonic waves. |
| 测量范围Measurement range | DN15-300mm |

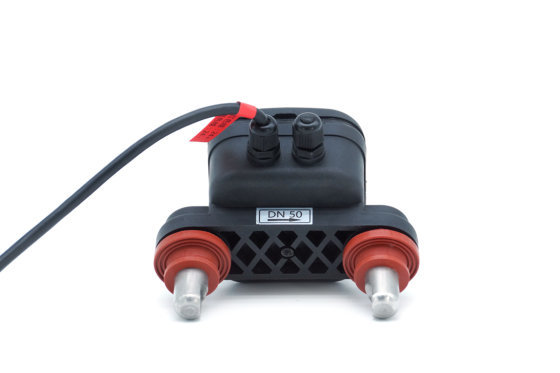

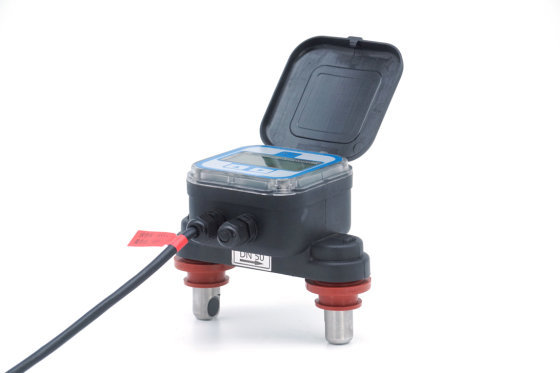

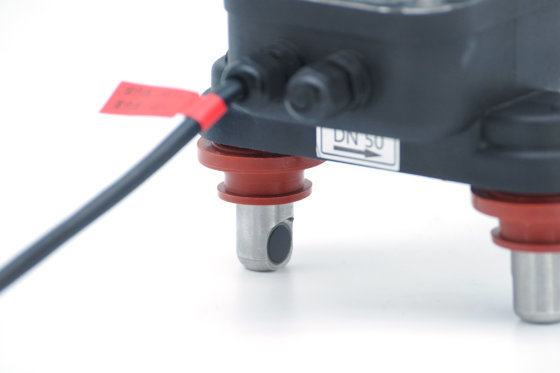

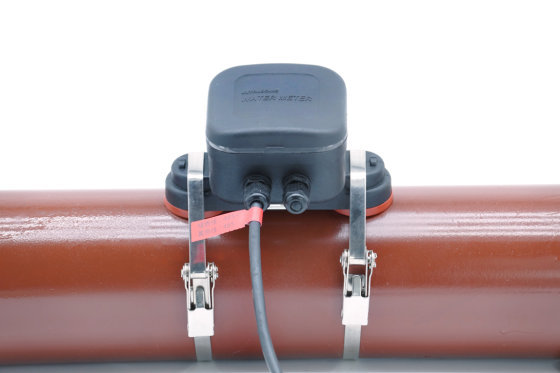

| 传感器类型Sensor type | 插入式（304不锈钢材质）Insert type (made of 304 stainless steel) |
| 防护等级Protection level | IP68；IP68; |
| 压力等级Pressure rating | 1.0MPa，1.6MPa，2.0MPa1.0MPa, 1.6MPa, 2.0MPa |
| 适用管材Applicable pipe materials | 碳钢、不锈钢、铸铁、铜、PVC、铝、玻璃钢等均匀质密的管道，允许有衬里Uniform and dense pipes such as carbon steel, stainless steel, cast iron, copper, PVC, aluminum, and fiberglass composite can have a lining. |
| 传感器湿度Sensor humidity | -30~180℃-30~180°C |
| 直管段Straight pipe section | 传感器安装距离可满足上游3倍下游0倍The sensor installation distance can be set to 3 times that of the upstream area and 0 times that of the downstream area. |
注：不可以直接焊接的管壁材质可加装抱箍RS485与4-20mA输出不能同时使用，只能单独选用。
Note: For pipe wall materials that cannot be welded directly, clamps can be used; the RS485 and 4-20mA output options cannot be used simultaneously – only one of them can be chosen.
产品选型Product selection
口径
DN15~300mm
压 力
1.0MPa
1.6MPa（标准）
2.0MPa
输出接口
M-BUS（标准）
RS485
4-20mA
通讯协议
188通讯协议（标准）
Diameter
DN15~300mm
Pressure
1.0MPa
1.6MPa (standard)
2.0MPa
Output interface
M-BUS (standard)
RS485
4-20mA
Communication protocol
188 communication protocol (standard)
MODBUS-RTU通讯协议
供电方式
DC9~24V供电
4-20mA两线制供电
太阳能供电
防护等级
IP68
选配功能
无（标准）
GPRS远传功能(2G)
MODBUS-RTU communication protocol
Power supply method
DC9~24V power supply
4-20mA two-wire power supply
Solar power supply
Protection rating
IP68
Optional functions
None (standard)
GPRS remote transmission function (2G)
GPRS远传功能（4G全网通）GPRS remote transmission function (4G network compatibility)
NB-loT远传功能NB-loT long-distance transmission feature
【备注】不带压插入式：无需焊接球阀，直接开孔插入被测液体管道中，即可实现测量。带压插入式：被测液体管道不能停产可使用带压开孔插入式。
【Notes】Pressure-free insertion type: No welding of ball valves is required; the device can be inserted directly into the pipeline containing the liquid to be measured, thereby enabling measurement. Pressure-bearing insertion type: This type can be used when it is not possible to stop the flow of liquid in the pipeline.
