产品特点Product features
开孔尺寸：19mmOpening size: 19mm
· 材质：底座是破钢：球阀、锁系露母是304不锈钢：
· Material: The base is made of recycled steel; the ball valve and locking mechanisms are made of 304 stainless steel:
·在大口径管道上使用既经济买用，文提高了测量的精确性、可靠性：Using it on large-diameter pipes is cost-effective and improves the accuracy and reliability of measurements:
· 插入式传感器的超声波发射晶体与被测量液体直接接触，提高了测量精度和机器的运行稳定性：
· The ultrasonic transmitting crystal of the insertable sensor is in direct contact with the liquid being measured, which improves the accuracy of the measurements as well as the stability of the machine’s operation:
· 解决了由于外夹式传感器长时间使用，造成耦音剂干燥而影响超声波信亏不能正常传输、不能正常工作等问题：
· It solves the problems that arise from the prolonged use of external clamping sensors, such as the drying out of the coupling agents, which in turn affects the transmission of ultrasonic signals and prevents proper operation:
· 解决了由于管道外壁结垢或腐蚀严重时，使用外夹式传感器信号额、测量不正常的难题：开且可以在水泥管、坡璃钢等不可焊接或不能传输超声波信号的管道上安装：
· It solves the problem of abnormal signal readings and inaccurate measurements that occur when the outer wall of a pipe is heavily scaled or corroded; it can be installed on pipes such as cement pipes and fiberglass-reinforced plastics pipes, which cannot be welded or through which ultrasonic signals cannot be transmitted:
平行插入式传感器对于壁厚无限制，可以对水质较差的水流进行测量（如砂磁、地下水、杂草等）适用于各种安装空间不足的场合
Parallel insertion sensors have no restrictions regarding wall thickness; they can be used to measure water with poor quality (such as water containing sand and magnets, groundwater, or water contaminated by weeds). They are suitable for use in situations where there is insufficient space for installation.
标准插入杆270mm标准插入杆不锈钢球阀长160mm标准插入杆带螺纹铜球阀长170mm
Standard insertion rod, 270 mm; stainless steel ball valve with standard insertion rod, length 160 mm; threaded copper ball valve with standard insertion rod, length 170 mm.
产品规格Product specifications
产品Products | 类型Type | 测量范围Measurement range | 温度范围Temperature range | 安装方法Installation method | 安装要求Installation requirements |

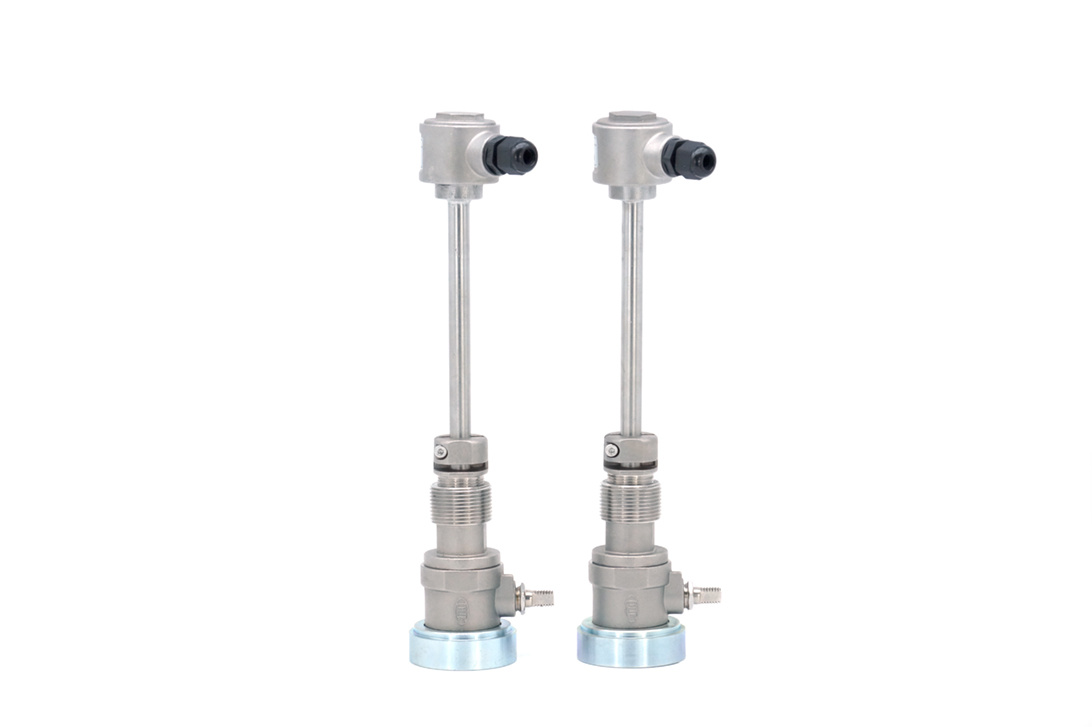

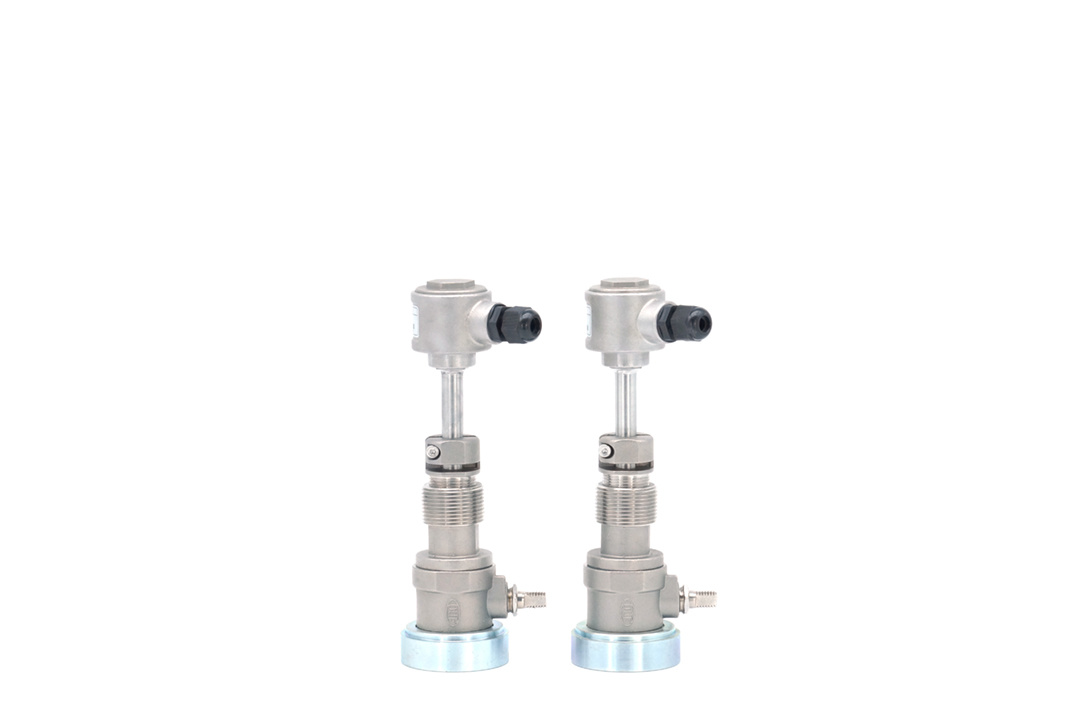

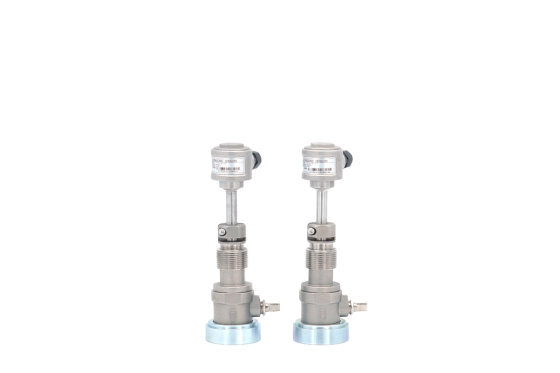

插入式传感器不锈钢球阀Insertion-type sensor stainless steel ball valve |
| 标准式插入传感器Standard insertion sensor | ≥DN50mm | -30℃~160℃-30°C~160°C | Z 法Z method | 无需断管断流，无压力损失，可带压开孔There is no need to disconnect the pipes or stop the flow; there is no pressure loss, and it is possible to make openings while the system is under pressure. |
| 加长式插入传感器Extended insertion sensor | ≥DN80mm | -30℃~160℃-30°C~160°C | Z 法Z method |

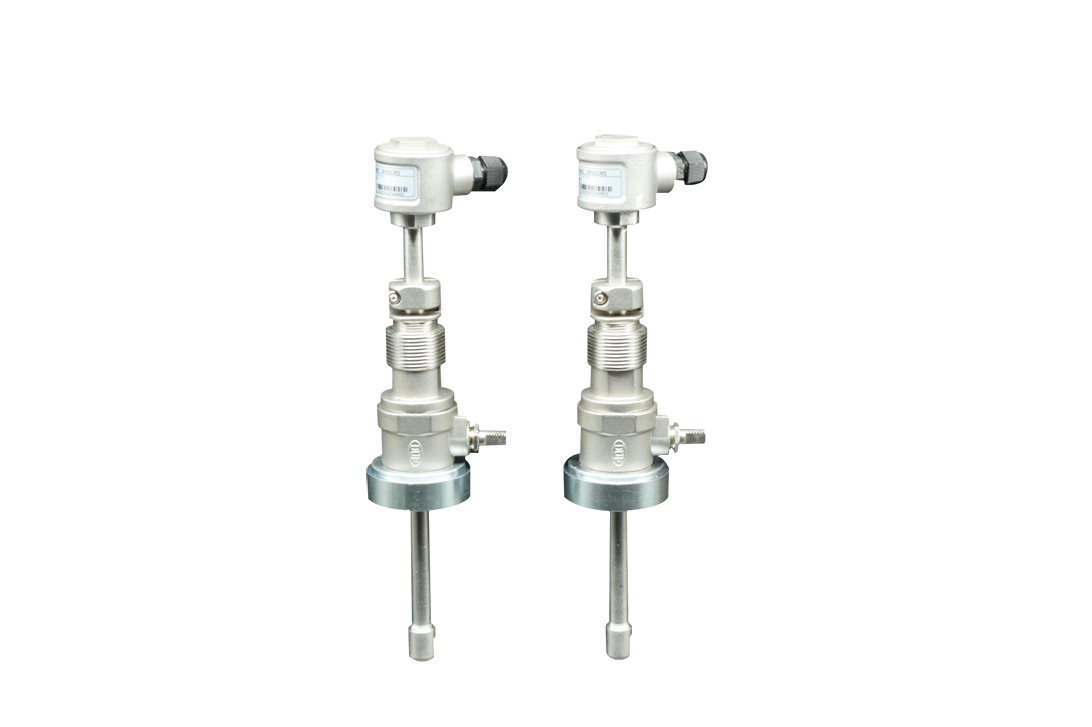

| 平行式插入传感器Parallel insertion sensor | DN32~DN150mm | -30℃~160℃-30°C~160°C | V 法V method |
≥DN200mm |

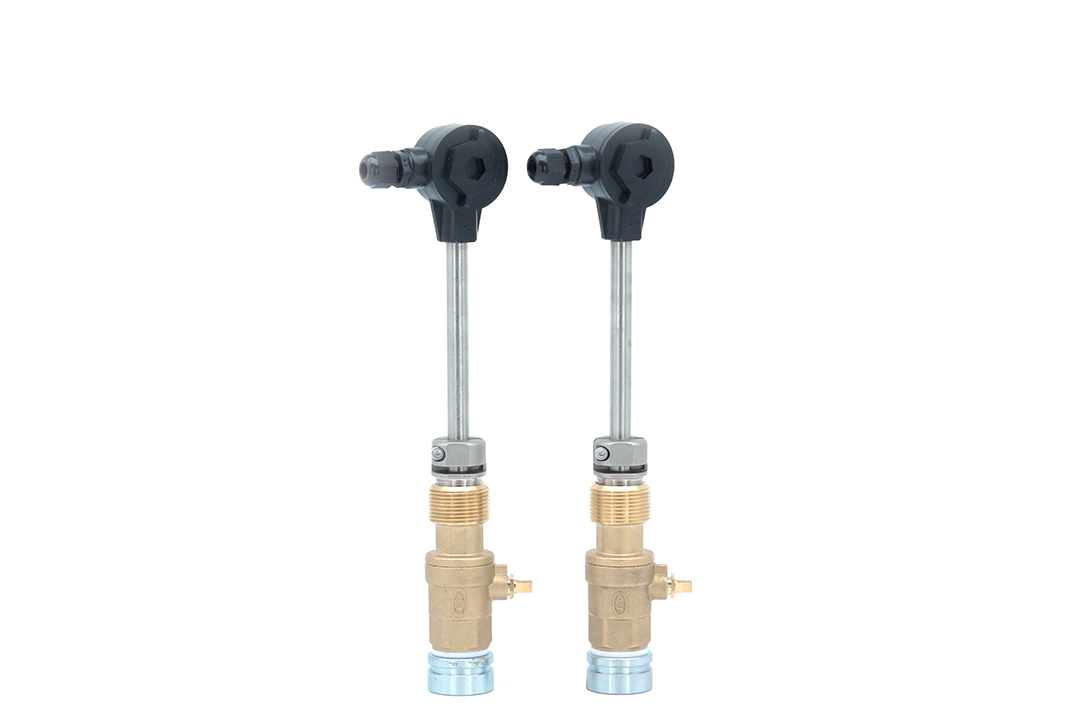

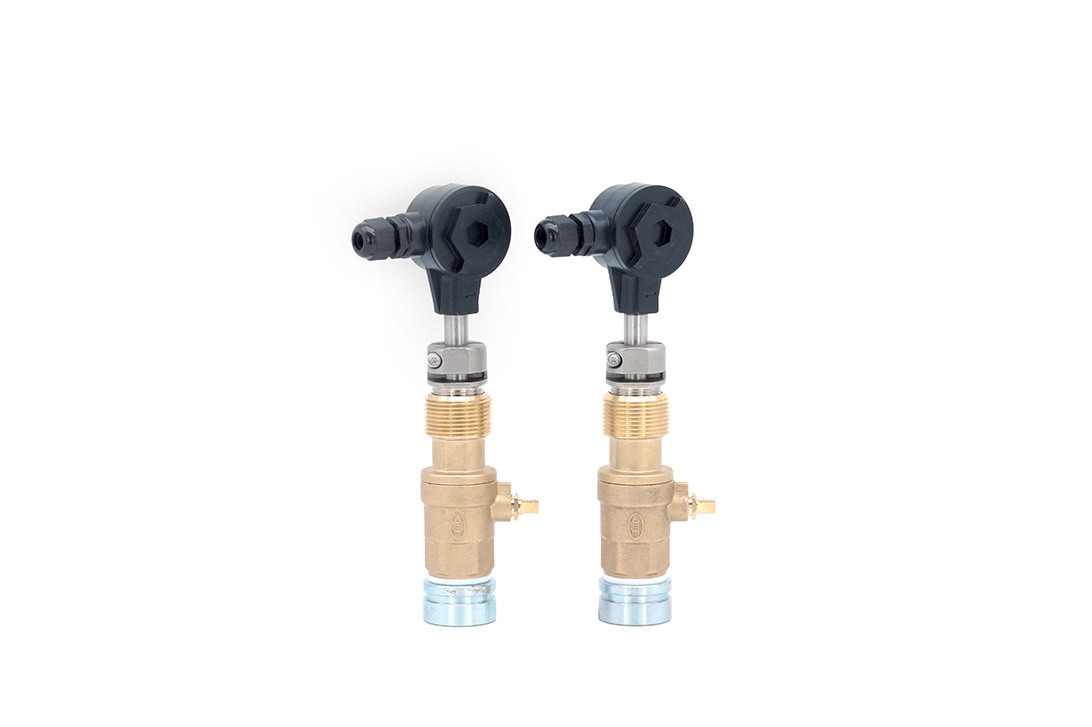

插入式传感器铜球阀Insertion-type sensor copper ball valve |
| 标准式插入传感器Standard insertion sensor | ≥DN50mm | -30℃~160℃-30°C~160°C | Z 法Z method | 无需断管断流，无压力损失，可带压开孔There is no need to disconnect the pipes or stop the flow of fluid; there is no pressure loss, and it is possible to make cuts while the system is under pressure. |
| 加长式插入传感器Extended insertion sensor | ≥DN80mm | -30℃~160℃-30°C~160°C | Z 法Z method |

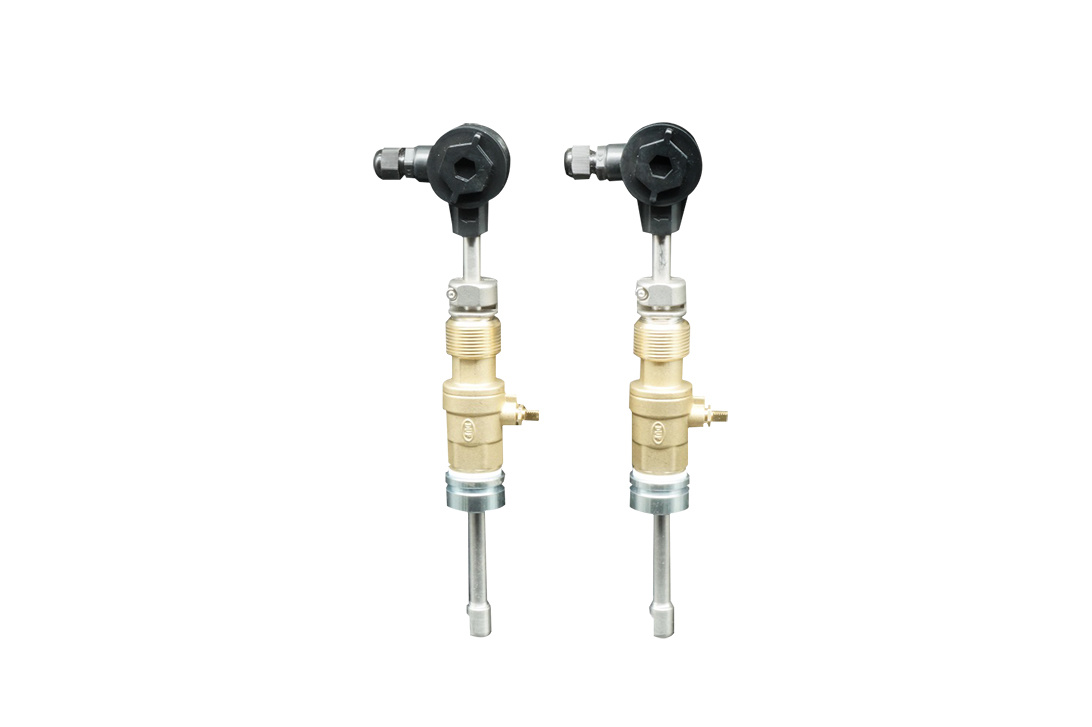

| 平行式插入传感器Parallel insertion sensor | DN32~DN150mm | -30℃~160℃-30°C~160°C | V 法V method |
≥DN200mm |
开孔工具Hole-making tool

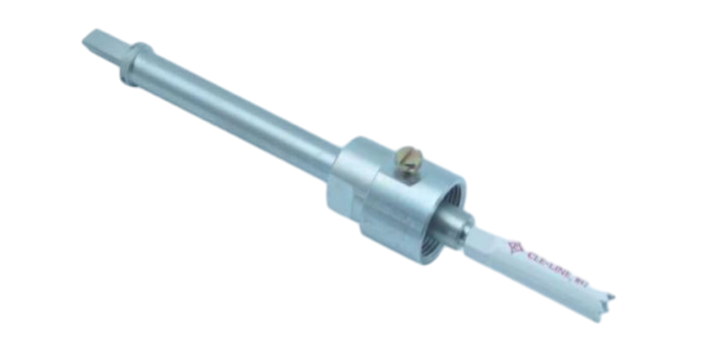

采用专业的开孔工具，无需停产，可实现不停水安装插入式超声波传感器。By using specialized drilling tools, it is possible to install plug-in ultrasonic sensors without interrupting production or shutting off the water supply.
