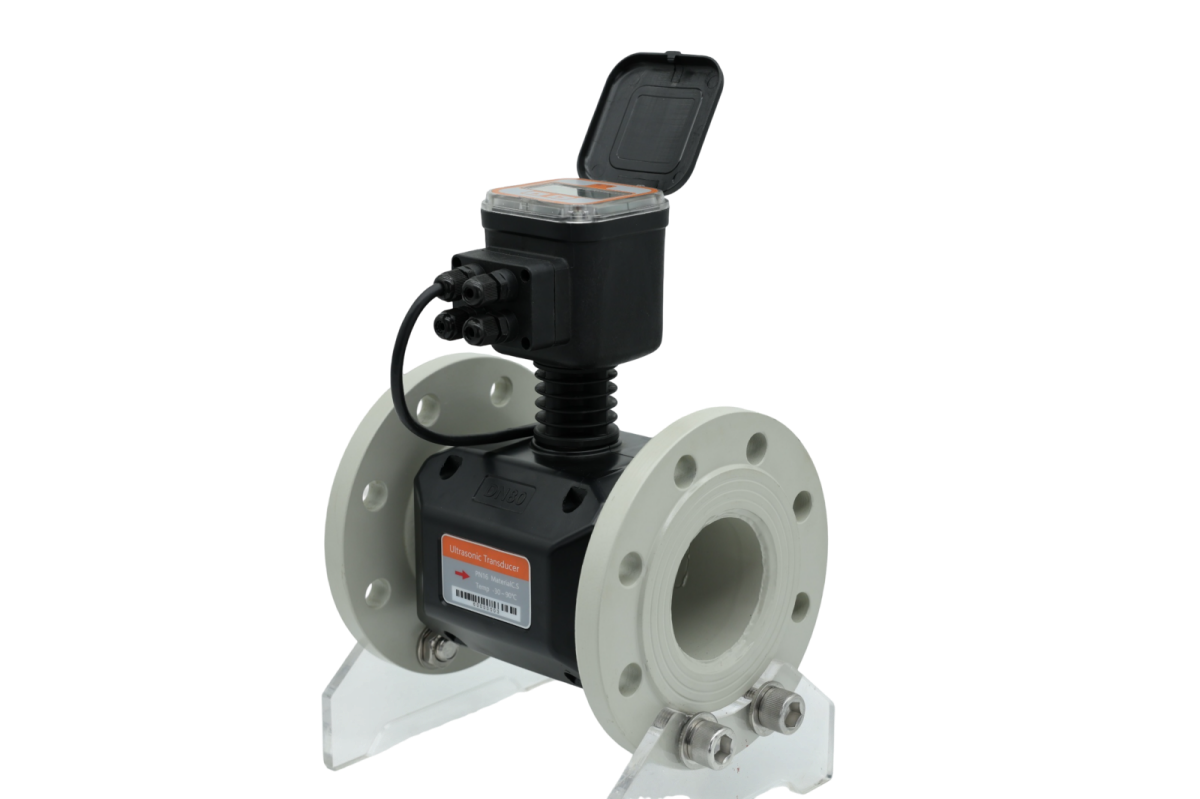

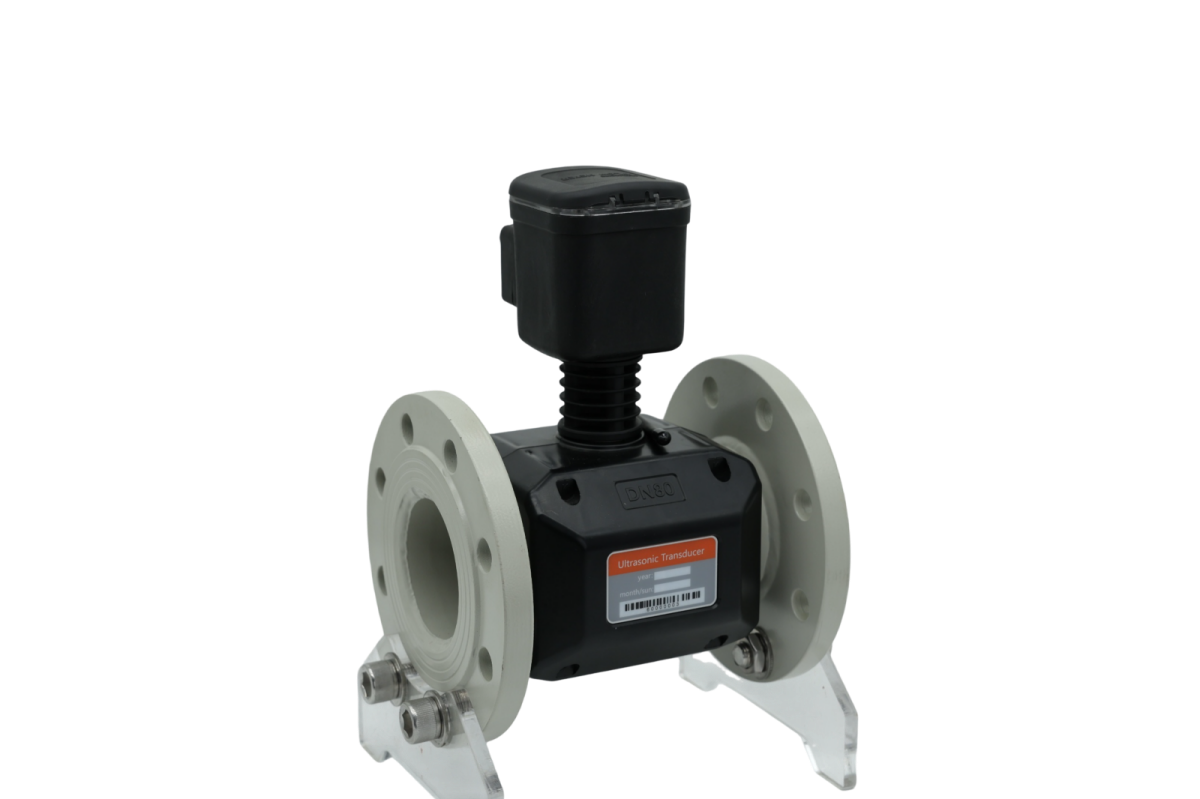

Tubular ultrasonic heat meter KLD-3000R

This series of products complies with the national standard of the People’s Republic of China, GB/T 32224-2015, titled \"Heat Meters\". The tubular ultrasonic heat meter utilizes ultrasonic flow sensors and temperature sensors to measure the flow rate of water supply as well as the temperature difference between the supply water and return water; it thereby measures and displays the amount of heat released or absorbed by the water as it passes through the heat exchange system. It offers independent measurement capabilities for both cold and hot water streams, allowing it to serve multiple purposes and meet the needs of different users. It is used for online measurement in heating networks, and its networking capability is suitable for managing large-scale water supply systems as well as monitoring water consumption. Wireless remote reading is possible in any area where there is GSM network coverage.

>Online inquiry

Previous Next

Details

This series of products complies with the national standard of the People’s Republic of China, GB/T32224-2015, titled \"Heat Meters\". The tubular ultrasonic heat meter utilizes ultrasonic flow sensors and temperature sensors to measure the flow rate of water supply as well as the temperature difference between the supply water and return water, thereby determining and displaying the amount of heat released or absorbed by the water as it passes through the heat exchange system. It offers independent measurement capabilities for both cold and hot water streams, allowing multiple functions from a single device and meeting the needs of different users. It is used for online measurement in heating networks, and its networking capability is suitable for managing large-scale water supply systems as well as monitoring water consumption. Wireless data collection is possible in any area with GSM network coverage. The temperature sensors are available in inserted and surface-mounted types, and they are based on two-wire PT1000 platinum resistors.<#>4#>

产品特点Product features

• Multiple power supply options are available, with no need for on-site adjustment.

• It can measure heat, it can measure cold, and it can measure both heat and cold simultaneously.

• The nominal diameter can range from DN40 to DN400 mm, and there are also various options available for the material of the pipe body.

• It offers a variety of output options, and can be connected to NB-lOT/4G/GPRS/GSM wireless networks to form monitoring systems.

• It has no mechanical moving parts, is not prone to damage, requires no maintenance, offers high measurement accuracy, operates stably, and boasts high reliability.

• The RS485 interface can be added to meet the various needs of users, enabling remote meter reading for easier centralized management; in the event of any abnormalities in the pipeline system, such issues are reported automatically.

技术参数Technical parameters

测量精度Measurement accuracy	一级Level 1
测量范围Measurement range	0～±10m/S
数据储存Data storage	断电保护功能，每月存储功能Power failure protection feature, monthly storage function
供电方式Power supply method	3.6V lithium battery; external DC9-24V power supply; 2-wire power supply with a current range of 4-20A; solar power supply is an option (please specify the desired power supply methods in advance).
操作方式Operation method	按键操作Key operation
性能Performance	单声道，双声道，四声道Mono, stereo, 4-channel
数据通讯Data communication	M-BUS接口 188通讯协议M-BUS interface, 188 communication protocol
	RS485 interface: baud rates of 2400bps, 4800bps, and 9600bps are available; the default value is 2400bps, using the Modbus-RTU protocol.
	4-20mA输出4-20mA output
压力损失Pressure loss	无压损No pressure loss
适用管材Applicable pipe materials	Uniform and dense pipes such as carbon steel, stainless steel, cast iron, copper, PVC, aluminum, and fiberglass can have a lining.
公称直径Nominal diameter	DN40～DN400mm
直管段Straight pipe section	The installation location of the sensor must satisfy the following conditions: 5D upstream, 2D downstream, and 30D away from the pump outlet (where D is the diameter of the pipe).
测量介质Measurement medium	Water, seawater, sewage, alcohol, and various oils are all single, uniform, stable liquids that can transmit ultrasonic waves.
测量温度Measure temperature	-30~180℃ 超高温需定制-30~180°C; ultra-high temperatures require customization
防护等级Protection level	IP68
传感器温度Sensor temperature	PT1000
仪表安装位置Instrument installation location	Water supply pipeline (must be specified during the installation of the return water system)
工作环境Work environment	环境A类/B类/C类Environment Class A/B/C
